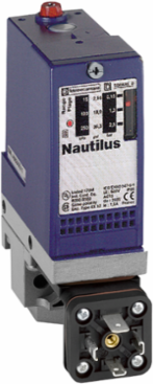

Telemecanique Sensors XMLA035C2C11 pressure switch XMLA 35 bar - fixed scale 1 threshold - 1 C/O

MPN: XMLA035C2C11
PPN: TES-XMLA035C2C11

$514.97

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

pressure switch XMLA 35 bar - fixed scale 1 threshold - 1 C/O

Documentation & Downloads

Specifications

Key Specifications

Contacts Type And Composition	1 C/O
Pressure Actuator	diaphragm
Range Of Product	Telemecanique Pressure sensors XM
Pressure Switch Type Of Operation	detection of 1 single threshold
Adjustable Range Of Switching Point On Falling Pressure	0.25-33.75 bar
Local Display	with
Pressure Sensor Size	35 bar
Scale Type	fixed differential
Enclosure Material	zinc alloy
Maximum Permissible Accidental Pressure	80 bar
Device Short Name	XMLA

Pressure Sensor Type	electromechanical pressure sensor
Electrical Connection	1 male connector EN 175301-803-A (ex DIN43650), 4 pins
[In] Rated Current	3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 \|\| 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 \|\| 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1
Product Or Component Type	electromechanical pressure sensor
Materials In Contact With Fluid	PTFE \|\| 316L stainless steel
Fluid Connection Type	G 1/4 (female) ISO 228
Controlled Fluid	corrosive fluid 0-160 °C)
Electrical Circuit Type	control circuit
Adjustable Range Of Switching Point On Rising Pressure	1.5-35 bar
Destruction Pressure	160 bar

Complementary

Repeat Accuracy	2 %
Terminal Block Type	4 terminals
Natural Differential At High Setting	1.25 bar +/- 0.25 bar)
Auxiliary Contacts Operation	snap action
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-1
Maximum Operating Rate	120 cyc/mn
Setting	external
Width	35 mm
Natural Differential At Low Setting	1.25 bar +/- 0.25 bar)

Height	113 mm
Short-Circuit Protection	10 A cartridge fuse gG (gl)
Contacts Material	silver contacts
Net Weight	0.725 kg
Maximum Permissible Pressure - Per Cycle	45 bar
[Ui] Rated Insulation Voltage	300 V UL 508 \|\| 500 V EN/IEC 60947-1 \|\| 300 V CSA C22.2 No 14
Mechanical Durability	5000000 cycles
Depth	75 mm
Maximum Resistance Across Terminals	25 mOhm IEC 255-7 category 3 \|\| 25 mOhm NF C 93-050 method A

Environment

Product Certifications	CSA \|\| BV \|\| CCC \|\| EAC \|\| LROS (Lloyds register of shipping) \|\| UL
Standards	UL 508 \|\| EN/IEC 60947-5-1 \|\| CSA C22.2 No 14 \|\| CE
Shock Resistance	50 gn IEC 60068-2-27
Ambient Air Temperature For Storage	-40-70 °C
Operating Position	any position

Ambient Air Temperature For Operation	-25-70 °C
Vibration Resistance	4 gn 30-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP65 EN/IEC 60529
Protective Treatment	TC standard version
Electrical Shock Protection Class	class I IEC 1140 \|\| class I IEC 536 \|\| class I NF C 20-030

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110914EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
