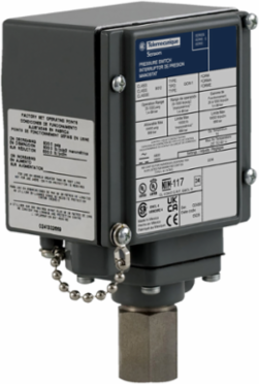

Telemecanique Sensors 9012GCW2G22 Pressure switch, 9012G, pressure range 90 to 2900 psig, adjustable scale, 2 thresholds, Nitrile (Buna-N) teflon

MPN: 9012GCW2G22
UPC: 785901047964
PPN: TES-9012GCW2G22

$1033.23

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Pressure switch, 9012G, pressure range 90 to 2900 psig, adjustable scale, 2 thresholds, Nitrile (Buna-N) teflon

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Cable entry	0.5 inch NPT conduit entrance
Electrical connection	Screw-clamp terminals, AWG 22...AWG 12
Local signalling	1 LED: (red) 24 V DC
Enclosure material	Die cast aluminium alloy 380
Operating position	Any position
Operating rate	120 cyc/mn

Terminal block type	4 screw terminals
Electrical circuit type	Control circuit
Setting	Internal
Pressure actuator	Piston
Materials in contact with fluid	Nitrile (Buna-N) teflon

Main

Range of product	9012G
Maximum pressure	15000 psi
Controlled fluid	Hydraulic oil (-15-250 °F), non-corrosive liquids (-15-250 °F), air (-15-250 °F), non-corrosive gas (-15-250 °F)
Pressure switch type of operation	Regulation between 2 thresholds
Local display	Without

Pressure sensor type	Electromechanical pressure switch
Contacts type and composition	NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts
Fluid connection type	0.25 inch 18 NPTF conforming to UL 508
Scale type	Adjustable differential

Environment

Vibration resistance	2 gn (f= 40-150 Hz) conforming to IEC 68-2-6
Standards	CE CSA C22.2 No 14 UL 508
NEMA degree of protection	NEMA 4/4X/13 conforming to UL 50
