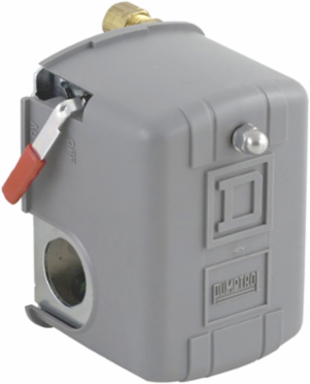

Telemecanique Sensors 9013FRG2J23M5 Pressure switch, 9013FR, pressure range 40 to 20 psi, adjustable differential, for water pump, reverse action, Maintained manual cut-in lever (AUTO-ON)
- MPN: 9013FRG2J23M5
- UPC: 785901000839
- PPN: TES-9013FRG2J23M5
CAD
$82.95
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch, 9013FR, pressure range 40 to 20 psi, adjustable differential, for water pump, reverse action, Maintained manual cut-in lever (AUTO-ON)
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Pressure sensor type | Electromechanical pressure switch |
|---|---|
| Pressure actuator | Diaphragm |
| Scale type | Adjustable differential |
| Local display | Without |
| Electrical connection | Screw-clamp terminals, clamping capacity: 10 AWG, screw-clamp terminals, clamping capacity: 5.261 mm² |
| Materials in contact with fluid | Zinc plated steel or equivalent flange, nitrile (Buna-N) or equivalent rubber diaphragm |
| Operating position | Any position |
| Operating rate | 10 cycles/min |
| Terminals description ISO n°1 | L1-T1 L2-T2 |
| Controlled fluid | Fresh water (32-158 °F) |
|---|---|
| Pressure switch type of operation | Regulation between 2 thresholds |
| Setting | Internal |
| Contacts type and composition | 2 NO, snap action, DPST-DB, Form XX |
| Fluid connection type | 0.25 inch NPSF internal conforming to UL 508 |
| Material | Polypropylene: cover, noryl thermoplastic resin or equivalent: cover |
| Terminal block type | 4 terminals |
| Repeat accuracy | +/- 3 % |
| Factory modification | Maintained manual cut-in lever (AUTO-ON) |
Environment
| Standards | CE NSF ANSI 61 Annex G UL 508 |
|---|---|
| NEMA degree of protection | NEMA 1 conforming to UL 50 |
| Product certifications | CSA UL listed |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
Main
| Range of product | Pumptrol |
|---|---|
| Value of setting | 40...20 psi |
| Product specific application | Control electrically driven water pumps |
| Type of packing | Individual |
| Pressure sensor name | 9013FR |
|---|---|
| Electrical circuit type | Power circuit |
| Quantity per set | 1 |
