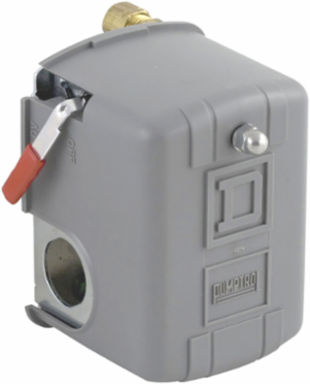

Telemecanique Sensors 9013FRG2J35M5 Square D Pumptrol, water pump switch 9013FR, adjust diff., 50 30 PSI, reverse action
- MPN: 9013FRG2J35M5
- UPC: 785901150862
- PPN: TES-9013FRG2J35M5
- UNSPSC: 39122210
CAD
$82.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, water pump switch 9013FR, adjust diff., 50 30 PSI, reverse action
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Product Specific Application
- control electrically driven water pumps
- Electrical Circuit Type
- power circuit
- Type Of Packing
- individual
Value Of Setting50...30 psi
Quantity Per Set1
Pressure Sensor Size65 psi 23-65 psi)
Pressure Sensor Name9013FR
Complementary
- Cable Entry Number
- 2 0.88 in cable entries with 0.84 in across flats UL 508
- Pressure Sensor Type
- electromechanical pressure switch
- Materials In Contact With Fluid
- zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
- Approximate Adjustable Differential
- 15-30 psi
- Terminals Description Iso N°1
- L1-T1 || L2-T2
- [Ui] Rated Insulation Voltage
- 575 V UL 508
- Repeat Accuracy
- +/- 3 %
- Scale Type
- adjustable differential
- Material
- polypropylene cover || noryl thermoplastic resin or equivalent cover
- Factory Modification
- maintained manual cut-in lever (AUTO-ON)
- Maximum Operating Rate
- 10 cyc/mn
- Width
- 3.1 in
- Motor Power Kw
- 0.75 kW 1 hp)115 V AC, 1 phase || 0.75 kW 1 hp)230 V AC, 1 phase || 0.75 kW 1 hp)115 V AC, 3 phases || 0.75 kW 1 hp)230 V AC, 3 phases || 0.18 kW 0.25 hp)32 V DC || 0.18 kW 0.25 hp)115 V DC || 0.18 kW 0.25 hp)230 V DC
- Destruction Pressure
- 220 psi
- Net Weight
- 1 lb(US)
- Fluid Connection Type
- 0.25 inch NPSF internal UL 508
Electrical Connectionscrew-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
Pressure Actuatordiaphragm
Height2.8 in
Terminal Block Type4 terminals
Short-Circuit Protection20 A cartridge fuse gG
Controlled Fluidfresh water -22-257 °F)
Settinginternal
Mechanical Durability300000 cycles
Pressure Switch Type Of Operationregulation between 2 thresholds
Operating Positionany position
Contacts Type And Composition2 NO, snap action, DPST-DB, Form XX
Depth3.76 in
Adjustable Range On Rising Pressure8-45 psi
Local Displaywithout
Electrical Durability100000 cycles 10 cyc/mn
Environment
- Product Certifications
- CSA file LR25490 || UL listed file E12158
- Ambient Air Temperature For Storage
- -33-257 °F
- Nema Degree Of Protection
- NEMA 1 UL 50
- Ip Degree Of Protection
- IP20 IEC 60529
Ambient Air Temperature For Operation-33-257 °F
StandardsNSF ANSI 61 Annex G || UL 508 || CE
Protective Treatmentnone
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Environmental DisclosureENVPEP111211EN
