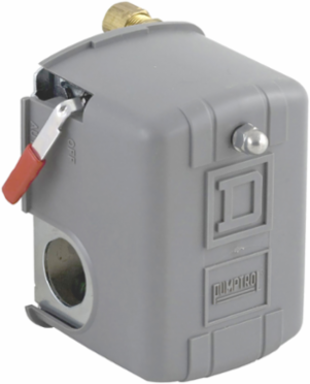

Telemecanique Sensors 9013FSG2J24M4C20 Square D Pumptrol, water pump switch 9013FS, adjustable diff., 40 60 PSI

This product is part of the Nema Pressure Switches range, an offer of water pump switches. This water pump switch has 2 NC, DPST-DB (double pole single throw, double break), form YY, snap action contacts. It has an adjustable differential scale, 40psi to 60psi pressure setting value and an approximate adjustable differential of 103.42kPa to 206.84kPa. The pressure switch with a pressure sensor size of 448.16kPa and an adjustable range on rising pressure of 137.9kPa to 448.16kPa. It is furnished with screw clamp terminals for electrical connection and 1/4inch NPSF for fluid connection. This high HP water pump switch has a diaphragm actuator which can be operated from any position and regulation of 2 thresholds. It is an IP20 and NEMA 1 rated product. The enclosure is made of polypropylene. Its dimensions are 78.74mm (width) x 95.5mm (depth) x 71.12mm (height). It weighs 9.07kg. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, molding presses and injection molders. This product is certified by CSA and UL. It meets CE, NSF ANSI 61 Annex G and UL 508 standards. Power pressure switch is rated for the direct control of motors in compressor applications. The Square D brand water pressure switch has expanded to industry leading Pressure Sensors and Switches.
