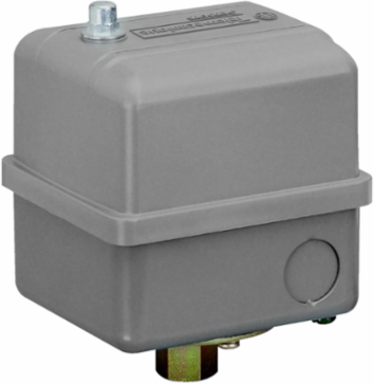

Telemecanique Sensors 9013GHG3J53X Square D Pumptrol, pump or compressor switch 9013GH, adjustable diff., 100 125 PSI
Telemecanique Sensors 9013GHG3J53X Square D Pumptrol, pump or compressor switch 9013GH, adjustable diff., 100 125 PSI
- MPN: 9013GHG3J53X
- UPC: 785901962281
- PPN: TES-9013GHG3J53X
- UNSPSC: 39122210
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$191.13/ EA
Description
Square D Pumptrol, pump or compressor switch 9013GH, adjustable diff., 100 125 PSI
Specifications
Environment
- Product Certifications
- UL listed file E12158 || CSA file LR25490
- Ambient Air Temperature For Storage
- -33-257 °F
- Nema Degree Of Protection
- NEMA 1 UL 50
- Ip Degree Of Protection
- IP20 IEC 60529
Ambient Air Temperature For Operation-33-257 °F
StandardsCE || UL 508 || NSF ANSI 372
Protective Treatmentnone
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Cable Entry Number
- 3 knock-outs for 1/2" conduit UL 508
- Pressure Sensor Type
- electromechanical pressure switch
- Materials In Contact With Fluid
- zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
- Approximate Adjustable Differential
- 20-40 psi
- Terminals Description Iso N°1
- L1-T1 || L2-T2
- Controlled Fluid
- air -22-257 °F) || fresh water -22-257 °F)
- Repeat Accuracy
- +/- 3 %
- Scale Type
- adjustable differential
- Material
- polypropylene cover || noryl thermoplastic resin or equivalent cover
- Factory Modification
- 2-way pressure release valve
- Maximum Operating Rate
- 10 cyc/mn
- Width
- 4.19 in
- Motor Power Kw
- 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phases || 2.2 kW 3 hp)230 V AC, 1 phase || 0.75 kW 1 hp)115 V DC || 0.75 kW 1 hp)230 V DC || 3.75 kW 5 hp)230 V AC, 3 phases || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 3 phases || 3.7 kW 5 hp)575 V AC, 1 phase || 3.7 kW 5 hp)575 V AC, 3 phases
- Destruction Pressure
- 300 psi
- Net Weight
- 2.25 lb(US)
- Fluid Connection Type
- 0.375 inch NPSF internal UL 508
Electrical Connectionscrew-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
Pressure Actuatordiaphragm
Height5.4 in
Terminal Block Type4 terminals
[Ui] Rated Insulation Voltage575 V UL 508
Short-Circuit Protection20 A cartridge fuse gG
Settinginternal
Mechanical Durability300000 cycles
Pressure Switch Type Of Operationregulation between 2 thresholds
Operating Positionany position
Contacts Type And Composition2 NC, snap action, DPST-DB, Form YY
Depth3.88 in
Adjustable Range On Rising Pressure65-200 psi
Local Displaywithout
Electrical Durability100000 cycles 10 cyc/mn
Specifications
- Range Of Product
- Square D Pumptrol
- Product Specific Application
- control electrically driven water pumps and air compressors
- Electrical Circuit Type
- power circuit
- Type Of Packing
- individual
Value Of Setting100...125 psi
Quantity Per Set1
Pressure Sensor Size200 psi 40-170 psi)
Pressure Sensor Name9013GH
