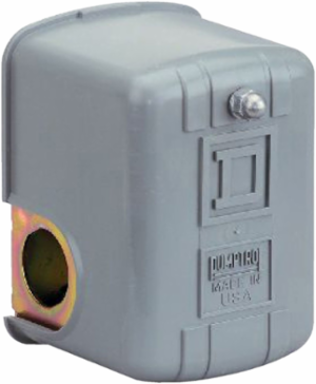

Telemecanique Sensors 9013FRG42J36 Square D Pumptrol, water pump switch 9013FR, fixed diff., 10 5 PSI, reverse action
- MPN: 9013FRG42J36
- UPC: 785901775065
- PPN: TES-9013FRG42J36
- UNSPSC: 39122210
CAD
$82.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, water pump switch 9013FR, fixed diff., 10 5 PSI, reverse action
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Pressure Sensor Name
- 9013FR
- Product Specific Application
- control electrically driven water pumps
- Electrical Circuit Type
- power circuit
Type Of Packingindividual
Value Of Setting10...5 psi
Quantity Per Set1
Pressure Sensor Size14 psi 6-14 psi)
Complementary
- Pressure Sensor Type
- electromechanical pressure switch
- Materials In Contact With Fluid
- zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
- Terminal Block Type
- 4 terminals
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Pressure Switch Type Of Operation
- regulation between 2 thresholds
- Contacts Type And Composition
- 2 NO, snap action, DPST-DB, Form XX
- Local Display
- without
- Electrical Durability
- 100000 cycles 10 cyc/mn
- Cable Entry Number
- 2 0.88 in cable entries with 0.84 in across flats UL 508
- [Ui] Rated Insulation Voltage
- 575 V UL 508
- Setting
- internal
- Scale Type
- fixed differential
- Material
- polypropylene Cover || noryl thermoplastic resin or equivalent Cover
- Width
- 2.78 in
- Motor Power Kw
- 0.75 kW 1 hp)115 V AC, 1 phase || 0.75 kW 1 hp)230 V AC, 1 phase || 0.75 kW 1 hp)115 V AC, 3 phase || 0.75 kW 1 hp)230 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.18 kW 0.25 hp)115 V DC || 0.18 kW 0.25 hp)230 V DC
Pressure Actuatordiaphragm
Height3.71 in
Terminals Description Iso N°1L2-T2 || L1-T1
Repeat Accuracy+/- 3 %
Maximum Operating Rate10 cyc/mn
Adjustable Range On Rising Pressure1-9 psi
Net Weight1 lb(US)
Fluid Connection Type0.25 inch NPSF internal UL 508
Electrical Connectionscrew-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
Controlled Fluidfresh water -22-257 °F)
Approximate Fixed Differential5 psi
Mechanical Durability300000 cycles
Operating Positionany position
Depth3.76 in
Destruction Pressure220 psi
Environment
- Product Certifications
- CSA file LR25490 || UL listed file E12158
- Standards
- UL 508 || NSF ANSI 61 Annex G || CE
- Ambient Air Temperature For Storage
- -33-257 °F
- Protective Treatment
- none
Ambient Air Temperature For Operation-33-257 °F
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Nema Degree Of ProtectionNEMA 1 UL 50
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111211EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111210EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
