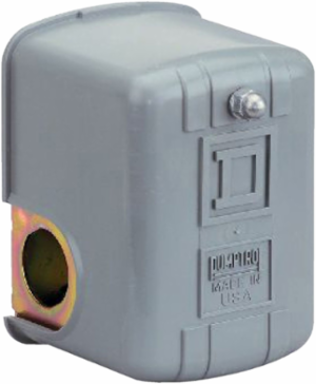

Telemecanique Sensors 9013FRG22J36P Square D Pumptrol, water pump switch 9013FR, adjust diff., 10 5 PSI, reverse action
- MPN: 9013FRG22J36P
- UPC: 785901106876
- PPN: TES-9013FRG22J36P
CAD
$82.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, water pump switch 9013FR, adjust diff., 10 5 PSI, reverse action
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Square D Pumptrol |
|---|---|
| Pressure Sensor Name | 9013FR |
| Product Specific Application | control electrically driven water pumps |
| Electrical Circuit Type | power circuit |
| Type Of Packing | individual |
|---|---|
| Value Of Setting | 10...5 psi |
| Quantity Per Set | 1 |
| Pressure Sensor Size | 45 psi 10-45 psi) |
Complementary
| Pressure Sensor Type | electromechanical pressure switch |
|---|---|
| Materials In Contact With Fluid | zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm |
| Approximate Adjustable Differential | 6-20 psi |
| Terminals Description Iso N°1 | L2-T2 || L1-T1 |
| Repeat Accuracy | +/- 3 % |
| Factory Modification | pulsation plug |
| Contacts Type And Composition | 2 NO, snap action, DPST-DB, Form XX |
| Local Display | without |
| Electrical Durability | 100000 cycles 10 cyc/mn |
| Cable Entry Number | 2 0.88 in cable entries with 0.84 in across flats UL 508 |
| [Ui] Rated Insulation Voltage | 575 V UL 508 |
| Setting | internal |
| Mechanical Durability | 300000 cycles |
| Operating Position | any position |
| Depth | 3.76 in |
| Destruction Pressure | 220 psi |
| Pressure Actuator | diaphragm |
|---|---|
| Height | 3.71 in |
| Terminal Block Type | 4 terminals |
| Short-Circuit Protection | 20 A cartridge fuse gG |
| Pressure Switch Type Of Operation | regulation between 2 thresholds |
| Maximum Operating Rate | 10 cyc/mn |
| Adjustable Range On Rising Pressure | 4-25 psi |
| Net Weight | 1 lb(US) |
| Fluid Connection Type | 0.25 inch NPSF internal UL 508 |
| Electrical Connection | screw-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm² |
| Controlled Fluid | fresh water -22-257 °F) |
| Scale Type | adjustable differential |
| Material | polypropylene Cover || noryl thermoplastic resin or equivalent Cover |
| Width | 2.78 in |
| Motor Power Kw | 0.75 kW 1 hp)115 V AC, 1 phase || 0.75 kW 1 hp)230 V AC, 1 phase || 0.75 kW 1 hp)115 V AC, 3 phase || 0.75 kW 1 hp)230 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.18 kW 0.25 hp)115 V DC || 0.18 kW 0.25 hp)230 V DC |
Environment
| Product Certifications | UL listed file E12158 || CSA file LR25490 |
|---|---|
| Standards | UL 508 || CE || NSF ANSI 61 Annex G |
| Ambient Air Temperature For Storage | -33-257 °F |
| Protective Treatment | none |
| Ambient Air Temperature For Operation | -33-257 °F |
|---|---|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Nema Degree Of Protection | NEMA 1 UL 50 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111211EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI111210EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
