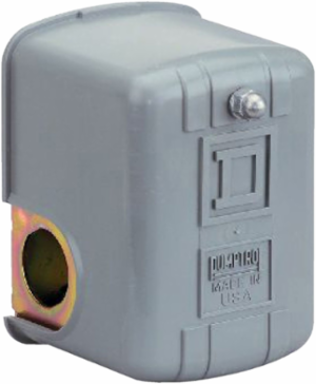

Telemecanique Sensors 9013FHG52J59 Square D Pumptrol, air compressor switch 9013FH, fixed differential, Off at 175 PSI, high hp
- MPN: 9013FHG52J59
- UPC: 785901051497
- PPN: TES-9013FHG52J59
- UNSPSC: 39122210
CAD
$59.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, air compressor switch 9013FH, fixed differential, Off at 175 PSI, high hp
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Pressure Sensor Name
- 9013FH
- Product Specific Application
- control small electrically driven air compressors
- Electrical Circuit Type
- power circuit
Type Of Packingindividual
Value Of Settingoff at 175 psi
Quantity Per Set1
Pressure Sensor Size200 psi
Complementary
- Pressure Sensor Type
- electromechanical pressure switch
- Materials In Contact With Fluid
- zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
- Terminal Block Type
- 4 terminals
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Pressure Switch Type Of Operation
- regulation between 2 thresholds
- Contacts Type And Composition
- 2 NC, snap action, DPST-DB, Form YY
- Local Display
- without
- Electrical Durability
- 100000 cycles 10 cyc/mn
- Cable Entry Number
- 2 0.88 in cable entries with 0.84 in across flats UL 508
- [Ui] Rated Insulation Voltage
- 575 V UL 508
- Setting
- internal
- Scale Type
- fixed differential
- Material
- polypropylene Cover || noryl thermoplastic resin or equivalent Cover
- Width
- 2.78 in
- Motor Power Kw
- 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase
Pressure Actuatordiaphragm
Height3.71 in
Terminals Description Iso N°1L2-T2 || L1-T1
Repeat Accuracy+/- 3 %
Maximum Operating Rate10 cyc/mn
Adjustable Range On Rising Pressure100-200 psi
Net Weight1 lb(US)
Fluid Connection Type0.25 inch NPSF internal UL 508
Electrical Connectionscrew-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
Controlled Fluidair -22-257 °F)
Approximate Fixed Differential40 psi
Mechanical Durability300000 cycles
Operating Positionany position
Depth3.76 in
Destruction Pressure220 psi
Environment
- Product Certifications
- CSA file LR25490 || UL listed file E12158
- Standards
- CE || UL 508
- Ambient Air Temperature For Storage
- -33-257 °F
- Protective Treatment
- none
Ambient Air Temperature For Operation-33-257 °F
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Nema Degree Of ProtectionNEMA 1 UL 50
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111211EN
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI111210EN
