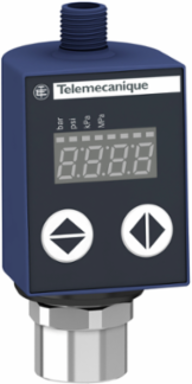

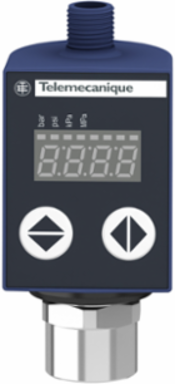

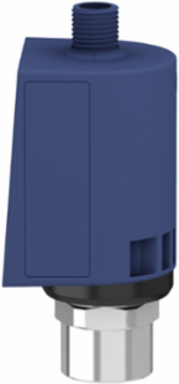

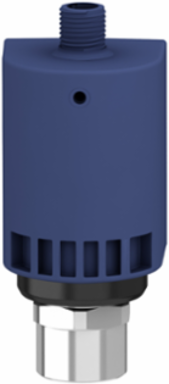

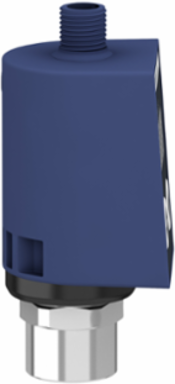

Telemecanique Sensors XMLR016G0T25 Electronic pressure sensors, Pressure sensors XM, XMLR 16 bar, G 1/4, 24 VDC, 4...20 mA, M12
- MPN: XMLR016G0T25
- PPN: TES-XMLR016G0T25
- UNSPSC: 41111927
CAD
$574.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XMLR electronic pressure sensor has a 4 digit 7-segment display. This electronic pressure transmitter sensor with digital display is designed for accurate pressure measurement and display. It is fixed directly on tubage. It provides high corrosion resistance AISI 316L stainless steel and fluorocarbon resin pressure chamber for maximum longevity. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It has a supply voltage of 24V DC and an analog ouput of 4mA to 20mA. It provides IP65/IP67 degree of protection. It is ideal in moulding and thermoforming presses, injection machines, pneumatic systems and assembly machinery, hydraulic systems of lifting and handling equipment, pumping and fresh water treatment. It complies with EN/IEC 61326-2-3 and UL 61010-1.
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Pressure Switch Type Of Operation
- pressure transmitter
- Fluid Connection Type
- G 1/4 (female) DIN 3852-Y
- Controlled Fluid
- fresh water 0-80 °C) || air -20-80 °C) || hydraulic oil -20-80 °C) || refrigeration fluid -20-80 °C)
- [Us] Rated Supply Voltage
- 24 V DC SELV 17-33 V)
- Device Short Name
- XMLR
Range Of ProductTelemecanique Pressure sensors XM
Product Or Component Typeelectronic pressure sensors
Pressure Sensor Size232 psi || 16 bar
Maximum Permissible Accidental Pressure62 bar || 900 psi || 6.2 MPa
Destruction Pressure900 psi || 62 bar || 6.2 MPa
Complementary
- Display Accuracy
- <= 1 % of the measuring range
- Height
- 93 mm
- Linearity Error
- <= 0.5 % of the measuring range
- Display Response Time Type
- fast 50 ms || normal 200 ms || slow 600 ms
- Drift Of The Zero Point
- +/- 0.1 % of measuring range/°C
- Operating Position
- any position, but disposals can falsified the measurement in case of upside down mounting
- Net Weight
- 0.19 kg
- Maximum Delay First Up
- 300 ms
- Scale Type
- fixed differential
- Housing Material
- polyacrylamide || 316L stainless steel
- Protection Type
- short-circuit protection || overvoltage protection || overload protection || reverse polarity
- Width
- 41 mm
- Front Material
- polyester
- Hysteresis
- <= 0.2 % of the measuring range
- Response Time On Output
- <= 10 ms analog output
Electrical Connectionmale connector M12, 4 pins
Accuracy<= 1 % of the measuring range
Type Of Output Signalanalogue
Repeat Accuracy<= 0.2 % of the measuring range
Electromagnetic Compatibilitysusceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 || surge immunity test 1 kV EN/IEC 61000-4-5 || electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 || electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
Materials In Contact With Fluidfluorocarbon FKM (Viton) || 316L stainless steel || ceramic
Current Consumption<= 50 mA
Analogue Output Function4...20 mA
Mechanical Durability10000000 cycles
Measurement Accuracy<= 0.6 % of the measuring range
Drift Of The Sensitivity+/- 0.03 % of measuring range/°C
Display Type4 digits 7 segments
[Uimp] Rated Impulse Withstand Voltage0.5 kV DC
Depth42 mm
Environment
- Product Certifications
- EAC || cULus
- Standards
- EN/IEC 61326-2-3 || UL 61010-1
- Marking
- CE
- Ip Degree Of Protection
- IP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529
Ambient Air Temperature For Operation-20-80 °C
Shock Resistance50 gn EN/IEC 60068-2-27
Vibration Resistance20 gn 10-2000 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-40-80 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
