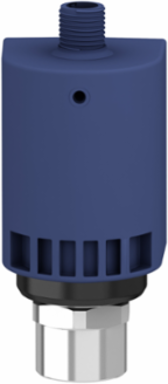

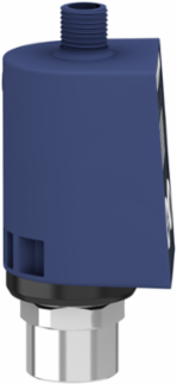

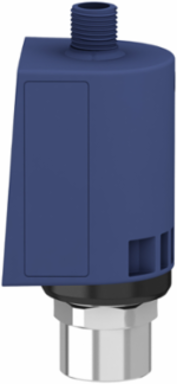

Telemecanique Sensors XMLR010G1P75 Electronic pressure sensors, Pressure sensors XM, XMLR 10 bar, G 1/4, 24 VDC, 0...10 V, PNP, M12
- MPN: XMLR010G1P75
- PPN: TES-XMLR010G1P75
CAD
$594.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

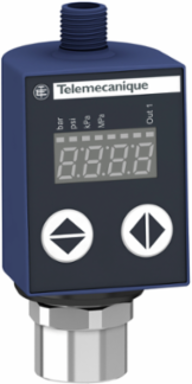

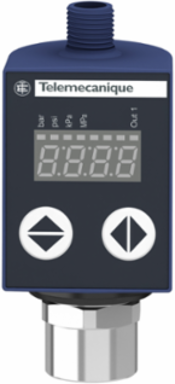

This XMLR electronic pressure sensor has a 4 digit 7-segment display. This electronic pressure transmitter sensor with digital display is designed for accurate pressure measurement and display. It is fixed directly on tubage. It provides high corrosion resistance AISI 316L stainless steel and fluorocarbon resin pressure chamber for maximum longevity. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It has a supply voltage of 24V DC, a solid state output (PNP) and an analog ouput of 0V to 10V. It provides IP65/IP67 degree of protection. It is ideal in moulding and thermoforming presses, injection machines, pneumatic systems and assembly machinery, hydraulic systems of lifting and handling equipment, pumping and fresh water treatment. It complies with EN/IEC 61326-2-3 and UL 61010-1.
Documentation & Downloads
Specifications
Key Specifications
| Pressure Sensor Type | pressure transmitter |
|---|---|
| Pressure Switch Type Of Operation | pressure transmitter with 1 switching output |
| Fluid Connection Type | G 1/4 (female) DIN 3852-Y |
| Controlled Fluid | fresh water 0-80 °C) || air -20-80 °C) || hydraulic oil -20-80 °C) || refrigeration fluid -20-80 °C) |
| [Us] Rated Supply Voltage | 24 V DC SELV 17-33 V) |
| Device Short Name | XMLR |
| Range Of Product | Telemecanique Pressure sensors XM |
|---|---|
| Product Or Component Type | electronic pressure sensors |
| Pressure Sensor Size | 145 psi || 10 bar |
| Maximum Permissible Accidental Pressure | 40 bar || 4 MPa || 580 psi |
| Destruction Pressure | 580 psi || 40 bar || 4 MPa |
Complementary
| Display Accuracy | <= 1 % of the measuring range |
|---|---|
| Height | 93 mm |
| Linearity Error | <= 0.5 % of the measuring range |
| Display Response Time Type | fast 50 ms || normal 200 ms || slow 600 ms |
| Repeat Accuracy | <= 0.2 % of the measuring range |
| Time Delay Range | 0...50 s in steps of 1 second |
| Maximum Switching Current | 250 mA |
| Operating Position | any position, but disposals can falsified the measurement in case of upside down mounting |
| Net Weight | 0.19 kg |
| Current Consumption | <= 50 mA |
| Maximum Delay First Up | 300 ms |
| Scale Type | fixed differential |
| Mechanical Durability | 10000000 cycles |
| Measurement Accuracy | <= 0.6 % of the measuring range |
| Adjustable Range Of Switching Point On Rising Pressure | 11.6-145 psi || 0.8-10 bar || 0.08-1 MPa |
| Width | 41 mm |
| Front Material | polyester |
| Hysteresis | <= 0.2 % of the measuring range |
| Response Time On Output | <= 10 ms analog output || <= 5 ms discrete output |
| Electrical Connection | male connector M12, 4 pins |
|---|---|
| Accuracy | <= 1 % of the measuring range |
| Type Of Output Signal | analogue + discrete |
| Maximum Voltage Drop | 2 V |
| Drift Of The Zero Point | +/- 0.1 % of measuring range/°C |
| Electromagnetic Compatibility | susceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 || surge immunity test 1 kV EN/IEC 61000-4-5 || electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 || electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2 |
| Adjustable Range Of Switching Point On Falling Pressure | 0.5-9.7 bar || 0.05-0.97 MPa || 7.25-141 psi |
| Materials In Contact With Fluid | 316L stainless steel || ceramic || fluorocarbon FKM (Viton) |
| Minimum Differential Travel | 30 kPa || 4.35 psi || 0.3 bar |
| Contacts Type And Composition | NO/NC programmable |
| Analogue Output Function | 0...10 V |
| Local Signalling | light ON when switch is actuated 1 LED yellow) |
| Housing Material | 316L stainless steel || polyacrylamide |
| Protection Type | overvoltage protection || overload protection || reverse polarity || short-circuit protection |
| Drift Of The Sensitivity | +/- 0.03 % of measuring range/°C |
| Display Type | 4 digits 7 segments |
| [Uimp] Rated Impulse Withstand Voltage | 0.5 kV DC |
| Depth | 42 mm |
| Discrete Output Type | solid state PNP, NO/NC programmable |
Environment
| Product Certifications | EAC || cULus |
|---|---|
| Standards | UL 61010-1 || EN/IEC 61326-2-3 |
| Marking | CE |
| Ip Degree Of Protection | IP65 EN/IEC 60529 || IP67 EN/IEC 60529 |
| Ambient Air Temperature For Operation | -20-80 °C |
|---|---|
| Shock Resistance | 50 gn EN/IEC 60068-2-27 |
| Vibration Resistance | 20 gn 10-2000 Hz)EN/IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Reach Free Of Svhc | Yes |
