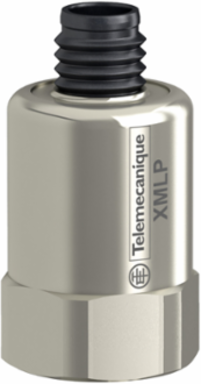

Telemecanique Sensors XMLP040BD790 Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 40 bar, 7/16 female, 0...10 V, M12, set of 1
- MPN: XMLP040BD790
- PPN: TES-XMLP040BD790
- UNSPSC: 41111927
CAD
$205.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XM range, an offer of electronic pressure sensors. The electronic pressure sensor features a SAE 7/16-20UNF-2B (female) with Schrader for fluid connection. It is a pressure switch with a pressure setting range of 0bar to 40bar, a maximum permissible accidental pressure of 120bar and a destruction pressure of 240bar. It supports 0V to 10V, 3-wire analogue output signal. It is furnished with 4-pin M12 male connector for electrical connection. It is an electronic pressure sensor with a rated supply voltage of 24V DC (voltage limits 12V to 33V) and a current consumption of <7mA. Its dimensions are 26mm (diameter) x 44mm (length). It weighs 0.1kg. It is suitable for monitoring air, fresh water, hydraulic oils and refrigeration fluids. This product is certified by CE, CULus, EAC and RCM. It meets EN/IEC 61326-2-3 and NSF ANSI 61 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration.
Documentation & Downloads
Specifications
Key Specifications
| Pressure Sensor Type | pressure transmitter |
|---|---|
| Range Of Product | Telemecanique Pressure sensors XM |
| Pressure Sensor Size | 40-40 bar |
| Type Of Packing | individual |
| Pressure Sensor Name | XMLP |
| Fluid Connection Type | SAE 7/16-20UNF-2B (female) with schrader |
| Controlled Fluid | fresh water 0-135 °C) || air -40-135 °C) || hydraulic oil -40-135 °C) || gas -40-135 °C) || refrigeration fluid -40-135 °C) |
| Electrical Circuit Type | control circuit |
| Type Of Output Signal | analogue |
|---|---|
| Electrical Connection | 1 male connector M12 4 pins |
| Product Or Component Type | electronic pressure sensors |
| Local Display | without |
| Current Consumption | < 7 mA |
| Analogue Output Function | 0...10 V, 3-wire |
| Quantity Per Set | set of 1 |
| [Us] Rated Supply Voltage | 24 V DC SELV 12-33 V) |
Complementary
| Accuracy | 0.1 % of the measuring range |
|---|---|
| [Uimp] Rated Impulse Withstand Voltage | 0.5 kV |
| Electromagnetic Compatibility | electrical fast transient/burst immunity test EN/IEC 61000-4-4 2 kV || electrostatic discharge immunity test EN/IEC 61000-4-2 8 kV air, 4 kV contact || 1.2/50 µs shock waves immunity test EN/IEC 61000-4-5 1 kV 42 Ohm || immunity to magnetic fields EN/IEC 61000-4-8 100 A/m 50 Hz || susceptibility to electromagnetic fields EN/IEC 61000-4-3 10 V/m 80...3000 MHz || radiated RF fields EN/IEC 61000-4-6 10 V 0.01...80 MHz |
| Length | 44 mm |
| Mechanical Durability | 10000000 cycles |
| Measurement Accuracy | +/- 0.5 % of the measuring range |
| Drift Of The Sensitivity | +/- 0.02 % of measuring range/°K |
| Destruction Pressure | 240 bar |
| Pressure Setting Range | 0-40 bar |
| Diameter | 26 mm |
|---|---|
| Drift Of The Zero Point | +/- 0.02 % of measuring range/°K |
| Materials In Contact With Fluid | stainless steel type AISI 303 |
| Net Weight | 0.1 kg |
| Operating Position | any position |
| Protection Type | reverse polarity || load short-circuit |
| Maximum Permissible Accidental Pressure | 120 bar |
| Response Time On Output | <= 2 ms 10...90 % of full scale |
Environment
| Product Certifications | CE || RCM || EAC || cULus |
|---|---|
| Standards | EN/IEC 61326-2-3 || NSF ANSI 61 |
| Vibration Resistance | 20 gn 15-2000 Hz) EN/IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -50-100 °C |
| Ambient Air Temperature For Operation | -30-85 °C |
|---|---|
| Shock Resistance | 100 gn 11 ms EN/IEC 60068-2-27 |
| Ip Degree Of Protection | IP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529 || IP69K conforming to EN/IEC 60529 |
| Protective Treatment | TC |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1511013EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
