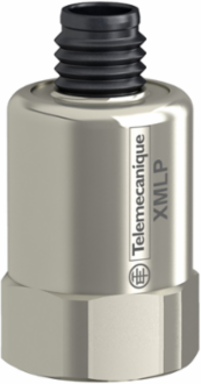

Telemecanique Sensors XMLP016BD290 pressure transmitter - XMLP - 16 bar - 7/16 female - 4..20mA - M12 - set of 1
Telemecanique Sensors XMLP016BD290 pressure transmitter - XMLP - 16 bar - 7/16 female - 4..20mA - M12 - set of 1
- MPN: XMLP016BD290
- PPN: TES-XMLP016BD290
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$205.62/ EA
Description
pressure transmitter - XMLP - 16 bar - 7/16 female - 4..20mA - M12 - set of 1
Specifications
Environment
- Product Certifications
- RCM || cULus || CE || EAC
- Ambient Air Temperature For Storage
- -50-100 °C
- Shock Resistance
- 100 gn 11 ms EN/IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-30-85 °C
StandardsEN/IEC 61326-2-3 || NSF ANSI 61
Vibration Resistance20 gn 15-2000 Hz) EN/IEC 60068-2-6
Ip Degree Of ProtectionIP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529 || IP69K conforming to EN/IEC 60529
Specifications
- Pressure Sensor Type
- pressure transmitter
- Type Of Output Signal
- analogue
- Range Of Product
- Telemecanique Pressure sensors XM
- Pressure Sensor Size
- 16-16 bar
- Electrical Circuit Type
- control circuit
- Type Of Packing
- individual
- Local Display
- without
- Current Consumption
- < 23 mA
Analogue Output Function4...20 mA, 2-wire
Controlled Fluidfresh water 0-135 °C) || air -40-135 °C) || hydraulic oil -40-135 °C) || gas -40-135 °C) || refrigeration fluid -40-135 °C)
Electrical Connection1 male connector M12 4 pins
Quantity Per Setset of 1
Product Or Component Typeelectronic pressure sensors
[Us] Rated Supply Voltage12...24 V DC SELV 7-33 V)
Pressure Sensor NameXMLP
Fluid Connection TypeSAE 7/16-20UNF-2B (female) with schrader
Complementary
- Accuracy
- 0.1 % of the measuring range
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Drift Of The Zero Point
- +/- 0.02 % of measuring range/°K
- Measurement Accuracy
- +/- 0.5 % of the measuring range
- Protection Type
- reverse polarity || load short-circuit
- Maximum Permissible Accidental Pressure
- 48 bar
- Length
- 44 mm
- Net Weight
- 0.1 kg
- Pressure Setting Range
- 0-16 bar
Diameter26 mm
Mechanical Durability10000000 cycles
Operating Positionany position
Electromagnetic Compatibilityelectrostatic discharge immunity test EN/IEC 61000-4-2 8 kV air, 4 kV contact || 1.2/50 µs shock waves immunity test EN/IEC 61000-4-5 1 kV 42 Ohm || immunity to magnetic fields EN/IEC 61000-4-8 100 A/m 50 Hz || electrical fast transient/burst immunity test EN/IEC 61000-4-4 4 kV || susceptibility to electromagnetic fields EN/IEC 61000-4-3 10 V/m 80...3000 MHz || radiated RF fields EN/IEC 61000-4-6 10 V 0.01...80 MHz
Drift Of The Sensitivity+/- 0.02 % of measuring range/°K
Materials In Contact With Fluidstainless steel type AISI 303
Destruction Pressure96 bar
Response Time On Output<= 2 ms 10...90 % of full scale
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511013EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
