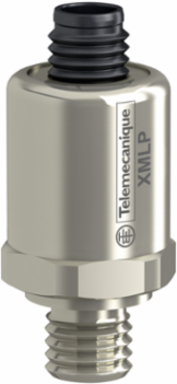

Telemecanique Sensors XMLP250MD71F Electronic pressure sensors, Pressure sensors XM, transmitter 250mbar, 0...10 V, G1/4 A male, FPM, M12
- MPN: XMLP250MD71F
- PPN: TES-XMLP250MD71F
- UNSPSC: 41111927
CAD
$205.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic pressure sensors, Pressure sensors XM, transmitter 250mbar, 0...10 V, G1/4 A male, FPM, M12
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Range Of Product
- Telemecanique Pressure sensors XM
- Pressure Sensor Size
- 250-250 mbar
- Type Of Packing
- individual
- Pressure Sensor Name
- XMLP
- Fluid Connection Type
- G 1/4A (male) DIN 3852-E
- Controlled Fluid
- fresh water 0-125 °C) || air -15-125 °C) || gas -15-125 °C) || hydraulic oil -15-125 °C)
- Electrical Circuit Type
- control circuit
Type Of Output Signalanalogue
Electrical Connection1 male connector M12 4 pins
Product Or Component Typeelectronic pressure sensors
Local Displaywithout
Current Consumption< 7 mA
Analogue Output Function0...10 V, 3-wire
Quantity Per Setset of 1
[Us] Rated Supply Voltage24 V DC SELV 12-33 V)
Complementary
- Diameter
- 26 mm
- Repeat Accuracy
- +/- 0.2 % of the measuring range
- Electromagnetic Compatibility
- susceptibility to electromagnetic fields EN/IEC 61000-4-3 10 V/m 80...1000 MHz || electrical fast transient/burst immunity test EN/IEC 61000-4-4 2 kV || radiated RF fields EN/IEC 61000-4-6 10 V 0.15...80 MHz || electrostatic discharge immunity test EN/IEC 61000-4-2 8 kV air, 4 kV contact || 1.2/50 µs shock waves immunity test EN/IEC 61000-4-5 1 kV 42 Ohm || immunity to magnetic fields EN/IEC 61000-4-8 100 A/m 50 Hz
- Length
- 32.3 mm
- Mechanical Durability
- 10000000 cycles
- Measurement Accuracy
- +/- 2 % of the measuring range
- Drift Of The Sensitivity
- +/- 0.02 % of measuring range/°K
- Destruction Pressure
- 5 bar
- Pressure Setting Range
- 0-0.25 bar
[Uimp] Rated Impulse Withstand Voltage0.5 kV
Drift Of The Zero Point+/- 0.05 % of measuring range/°K
Materials In Contact With Fluidstainless steel AISI 316L || fluorocarbon FPM || ceramic
Net Weight0.075 kg
Operating Positionany position
Protection Typereverse polarity || load short-circuit
Maximum Permissible Accidental Pressure3 bar
Response Time On Output<= 2 ms 92 % of full scale
Environment
- Product Certifications
- CE || RCM || cULus || EAC
- Standards
- EN/IEC 61326-2-3 || NSF ANSI 61
- Vibration Resistance
- 20 gn 10-2000 Hz) EN/IEC 60068-2-6
- Ambient Air Temperature For Storage
- -50-100 °C
Ambient Air Temperature For Operation-30-85 °C
Shock Resistance100 gn 11 ms EN/IEC 60068-2-27
Ip Degree Of ProtectionIP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529 || IP69K conforming to DIN 40050
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511013EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
