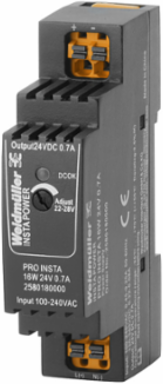

Weidmuller 2580180000 PRO INSTA 16W 24V 0.7A
- MPN: 2580180000
- PPN: WDM-2580180000
CAD
$43.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PRO INSTA 16W 24V 0.7A
Documentation & Downloads
Specifications
General Data
| Degree of efficiency | 82.5 % |
|---|---|
| MTBF | > 750.000 h nach IEC 61709 (SN29500) |
| Operating temperature | -25 °C...70 °C |
| Power loss, nominal load | 3.6 W |
| Protection degree | IP20 |
| Housing version | Plastic, protective insulation |
|---|---|
| Mounting position, installation notice | Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load |
| Power loss, idling | 0.4 W |
| Protection against reverse voltages from the load | 30…35 V DC |
Signalling
| LED green | Operating voltage OK |
|---|
Connection Data (Input)
| Conductor cross-section, AWG/kcmil , max. | 12 |
|---|---|
| Conductor cross-section, flexible , min. | 0.25 mm² |
| Conductor cross-section, rigid , min. | 0.25 mm² |
| Number of terminals | 2 (L,N) |
| Conductor cross-section, AWG/kcmil , min. | 24 |
|---|---|
| Conductor cross-section, rigid , max. | 2.5 mm² |
| Connection system | PUSH IN |
| Wire connection cross section, flexible (input), max. | 2.5 mm² |
Approvals
| Approvals | CCSAUS, TUEV |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 22.5 mm |
|---|---|
| Height | 90.5 mm |
| Depth | 60 mm |
| Net weight | 82 g |
| Width (inches) | 0.886 inch |
|---|---|
| Height (inches) | 3.563 inch |
| Depth (inches) | 2.362 inch |
Electrical Safety (Applied Standards)
| Electrical machine equipment | Acc. to EN60204 |
|---|---|
| Protection against dangerous shock currents | Acc. to VDE0106-101 |
| Safety transformers for switch-mode power supplies | According to EN 61558-2-16 |
| For use with electronic equipment | Acc. to EN50178 / VDE0160 |
|---|---|
| Protective separation / protection against electrical shock | VDE0100-410 / acc. to DIN57100-410 |
Emc / Shock / Vibration
| Limiting of mains voltage harmonic currents | According to EN 61000-3-2 |
|---|---|
| Vibration resistance IEC 60068-2-6 | 2.3 g |
| Shock resistance IEC 60068-2-27 | 15 g In all directions |
| Noise emission in accordance with EN55032 | Class B |
|---|---|
| Interference immunity test acc. to | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips), EN 61000-4-11 (Dips) |
Input
| AC current consumption | 0.25 A @ 230 V AC / 0.45 A @ 100 V AC |
|---|---|
| Connection system | PUSH IN |
| DC input voltage range | 95…370 V DC |
| Input fuse (internal) | Yes |
| Rated input voltage | 100 - 240 V AC / 120 - 340 V DC |
| AC input voltage range | 85...264 V AC (derating at 100 V AC) |
|---|---|
| DC current consumption | 0.08 A @ 370V DC /0.22 A @ 120 V DC |
| Frequency range AC | 45…65 Hz |
| Inrush current | max. 40 A |
| Recommended back-up fuse | 2 A / DI, safety fuse6 A, Char. B, circuit breaker2...4 A, Char. C circuit breaker |
Classifications
| ETIM 6.0 | EC002540 |
|---|---|
| eClass 9.0 | 27-04-07-01 |
| eClass 10.0 | 27-04-07-01 |
| ETIM 7.0 | EC002540 |
|---|---|
| eClass 9.1 | 27-04-07-01 |
Output
| Capacitive load | unrestricted |
|---|---|
| Continous output current @ U | 0.7 A @ 55 °C, 0.43 A @ 70 °C |
| Output voltage | 22...28 V (adjustable via potentiometer on front) |
| Rated output voltage | 24 V DC ± 1 % |
| Connection system | PUSH IN |
|---|---|
| Nominal output current for U | 0.7 A @ 55 °C |
| Ramp-up time | ≤ 100 ms |
| Residual ripple, breaking spikes | < 50 mVss @ UNenn, Full Load |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Insulation voltage input / earth | 3.5 kV |
|---|---|
| Insulation voltage, input/output | 4 kV |
| Protection class | II |
| Insulation voltage output / earth | 0.5 kV |
|---|---|
| Pollution severity | 2 |
Connection Data (Output)
| Conductor cross-section, AWG/kcmil , max. | 12 |
|---|---|
| Conductor cross-section, flexible , max. | 2.5 mm² |
| Conductor cross-section, rigid , max. | 2.5 mm² |
| Connection system | PUSH IN |
| Conductor cross-section, AWG/kcmil , min. | 24 |
|---|---|
| Conductor cross-section, flexible , min. | 0.25 mm² |
| Conductor cross-section, rigid , min. | 0.25 mm² |
| Number of terminals | 2 (+ / -) |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -25 °C...70 °C |
| Operating temperature, min. | -25 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
