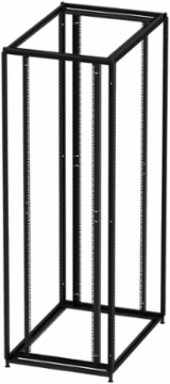

nVent Hoffman PS1F23812B ProLine S1 Frame Package 90.94x31.45x46.76 Inch Black Steel, 48 Rack Units
- MPN: PS1F23812B
- UPC: 783510573942
- PPN: HOF-PS1F23812B
- UNSPSC: 39121334
CAD
$2149.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ProLine S1 Frame Packages are an economical rack solution for multi-tenant data center deployments. This ProLine S1 Frame Package, PS1F23812B item measures 90.94x31.45x46.76 inches with a material of Mild Steel colored Jet Black.
Features
- Combination foot and adjustable leveler in each cabinet corner
- Two sets of L-Shaped, heavy gauge Rack Angles with rack unit markings are furnished – tapped holes (10-32) on one side and square holes (.375 in. x .375 in.) on the other side
- Rack angles are fully adjustable front to rear and easily converted to either the tapped or square hole configuration; use square holes for server cabinets and tapped holes for communication cabinets
- Rack angles come centered in all cabinet for 19-in. rack spacing; in 700mm and 800m wide cabinets they can be adjusted to 23-in. rack spacing, and either centered or biased to one side for use with one or two vertical cable manager accessories (23-in. can only be biased in 800mm wide cabinets)
- Open base for easy cable entrance
- Compatible with all ProLine S1 accessories. See ProLine S1 Cabinet spec sheet for additional details
- 12 gauge cold rolled multi-formed welded steel frame construction
- Leveler is made of 12mm threaded steel, adjusting nut and composite foot
- LOAD RATING - Static (cabinet positioned in place and loaded with equipment) per UL 2416 test: 3000 lbs.
- DYNAMIC RATING*- Caster: Light Duty - 900 lbs.; Heavy Duty - 3000 lbs; order caster kits separately.
- Dynamic Ship Rating: 1000 lbs. per ASTM D4169-14 (Distribution Testing) and ASTM D4728 (Vibration Testing)
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 799
- Product Family
- ProLine S1
- Finish
- Powder Coated
- Color Code
- RAL 9005
- Rack Units
- 48
- Weight
- 119
Height (H)2,310
Depth (D)1,188
MaterialMild Steel
ColorJet Black
Thickness (T)2.66
Rack Width19
