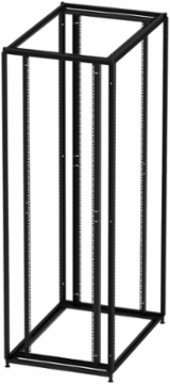

nVent Hoffman PS1F247512B ProLine S1 Frame Package 94.87 Inch x 29.48 Inch x 46.76 Inch, Mild Steel, 51 Rack Units, Jet Black

ProLine S1 Frame Package 94.87 Inch x 29.48 Inch x 46.76 Inch, Mild Steel, 51 Rack Units, Jet Black
  • MPN: PS1F247512B
  • UPC: 783510573966
  • PPN: HOF-PS1F247512B
  • UNSPSC: 39121334

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2149.54/ EA

Description

ProLine S1 Frame Packages are an economical rack solution for multi-tenant data center deployments. This ProLine S1 Frame Package, PS1F247512B item measures 94.87x29.48x46.76 inches with a material of Mild Steel colored Jet Black.

Features

  • Combination foot and adjustable leveler in each cabinet corner
  • Two sets of L-Shaped, heavy gauge Rack Angles with rack unit markings are furnished – tapped holes (10-32) on one side and square holes (.375 in. x .375 in.) on the other side
  • Rack angles are fully adjustable front to rear and easily converted to either the tapped or square hole configuration; use square holes for server cabinets and tapped holes for communication cabinets
  • Rack angles come centered in all cabinet for 19-in. rack spacing; in 700mm and 800m wide cabinets they can be adjusted to 23-in. rack spacing, and either centered or biased to one side for use with one or two vertical cable manager accessories (23-in. can only be biased in 800mm wide cabinets)
  • Open base for easy cable entrance
  • Compatible with all ProLine S1 accessories. See ProLine S1 Cabinet spec sheet for additional details
  • 12 gauge cold rolled multi-formed welded steel frame construction
  • Leveler is made of 12mm threaded steel, adjusting nut and composite foot
  • LOAD RATING - Static (cabinet positioned in place and loaded with equipment) per UL 2416 test: 3000 lbs.
  • DYNAMIC RATING*- Caster: Light Duty - 900 lbs.; Heavy Duty - 3000 lbs; order caster kits separately.
  • Dynamic Ship Rating: 1000 lbs. per ASTM D4169-14 (Distribution Testing) and ASTM D4728 (Vibration Testing)

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
749
Product Family
ProLine S1
Finish
Powder Coated
Color Code
RAL 9005
Rack Units
51
Weight
123
Height (H)2,410
Depth (D)1,188
MaterialMild Steel
ColorJet Black
Thickness (T)2.66
Rack Width19
