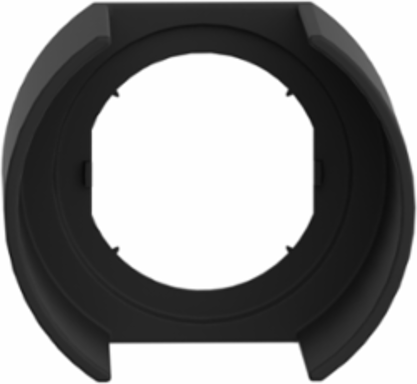

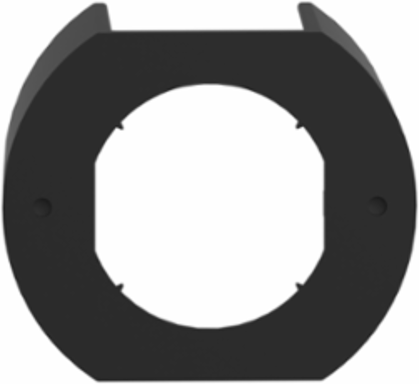

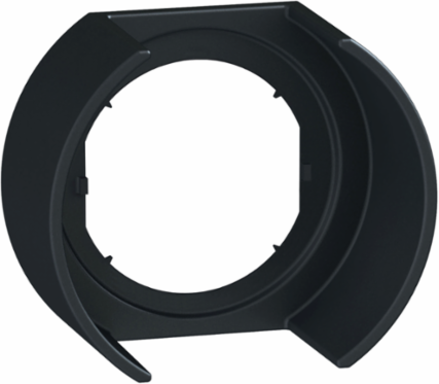

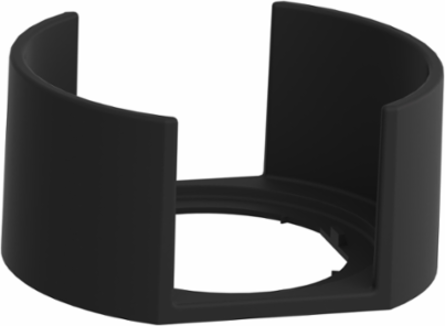

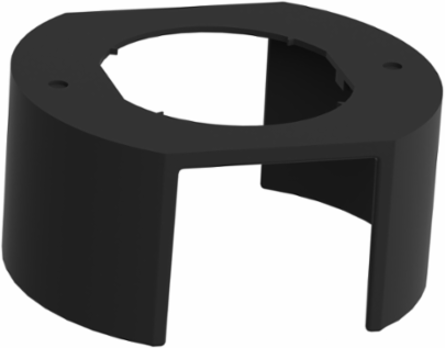

Schneider Electric ZBZ1902 Harmony XB4 Plastic Protective Guard, Black, IP66, Vertical Mounting

MPN: ZBZ1902
PPN: SCH-ZBZ1902

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$21.74

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony ZB, plastic guard is black. It operates with vertical mounting and can be used in harsh environment. It is compatible with Harmony XB4 and XB5 push buttons. This plastic guard is designed as an accessory for protection of your push buttons. It is compatible with any standard 22mm XB4 and XB5 push button units and is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. This plastic guard is ideal for protection of control and signaling units in harsh environment. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States

Physical Attributes

Color	Black, Black
Cad Overall Height	22 mm

Cad Overall Depth	39.7 mm
Cad Overall Width	47 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	0, no
Accessory Destination	push-button, for standard head
Carbon Footprint Of The Distribution Phase [A4]	0.0010461257, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0017391589, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-04-09
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Material	plastic
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 1
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.1 kg CO2 eq.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Metal padlockable guard for emergency stop function has 40mm mushroom head with black color. It is compatible with Harmony XB4 and XB5 mushroom head push buttons.. It is easily installed and attached to Harmony XB4 and XB5 mushroom head push buttons units. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Accessory / Separate Part Category	isolation accessory
Package Weight(Lbs)	8.0 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Range Of Product	Harmony XB5, Harmony XB4
Accessory / Separate Part Destination	push-button, for standard head
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0006895785
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.1 kg CO2 eq., 0.0649586966
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Operator Additional Information	vertical mounting
Product Or Component Type	guard
Returnability	Yes
Sustainable Packaging	No
Pep Code	ENVPEP2506045EN
Pep Verification Date	2023-06-09
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	3926909989

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Product Compatibility	ZB4BC, ZB5BC
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2506045EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2506045EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.0684335596
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-06-09
Psr Version	PSR-0005-ed2-2016 03 29
