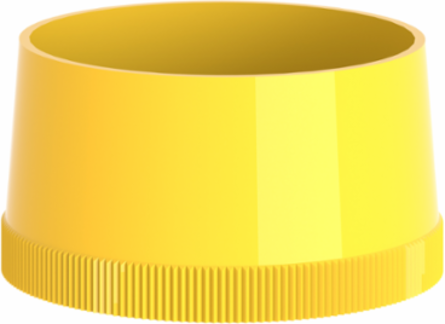

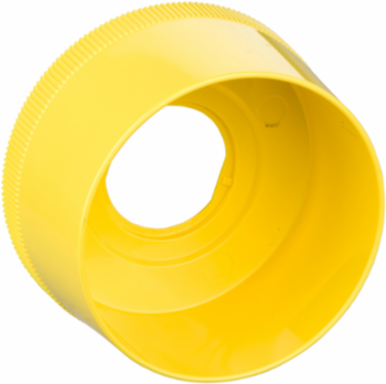

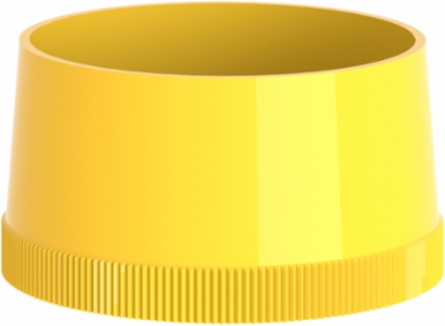

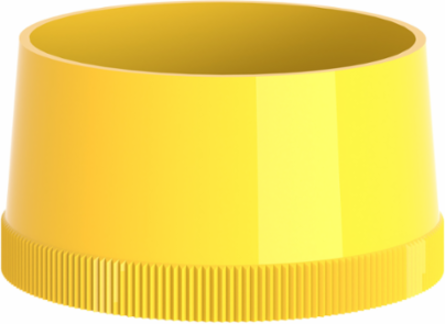

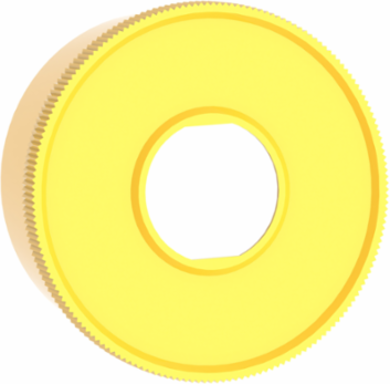

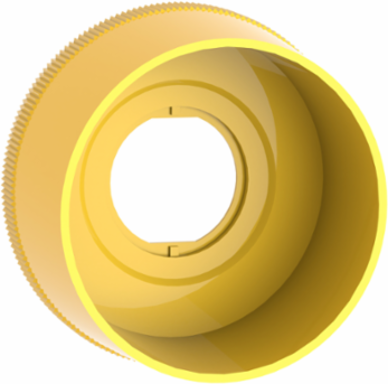

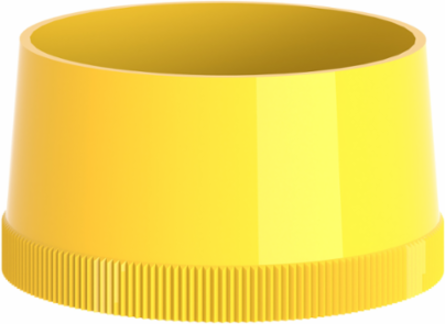

Schneider Electric ZB4BZ1905 Yellow Plastic Round Guard for 40mm Emergency Stop, IK05, 63.5mm
- MPN: ZB4BZ1905
- UPC: 785901230687
- PPN: SCH-ZB4BZ1905
CAD
$22.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This protection accessory is designed to be fitted beneath the head for insertion It is compatible with any standard 40mm emergency stop pushbutton It weighs 0.032 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
Features
- It provides a flawless direct-mount fit beneath the operator head of any standard 40 mm mushroom-head emergency stop pushbutton within the Schneider Electric Harmony XB4 (metal) and XB5 (plastic) series, ensuring effortless mechanical connection without requiring custom modifications.
- The 63.5mm diameter molded profile acts as a physical barrier that shielded the e-stop button from accidental bumps, dropped tools, or passing equipment, while keeping the mushroom head fully accessible for intentional emergency activation. This targeted protection drastically reduces costly machine downtime and false alarms caused by inadvertent contact in high-traffic production environments.
- Built from heavy-duty industrial thermoplastic with an IK05 impact protection rating, this guard is optimized for rugged environments with an operational temperature range of -40 F to 158 F (-40 C to 70 C).
- Featuring a vibrant, industry-standard safety yellow color, this guard ensures immediate visual identification of critical safety controls from a distance. It is a Green Premium certified product complying with RoHS and carries Marine ABS certification, making it fully compliant for installation in regulated industrial plants and maritime applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Cad Overall Height
- 38.1 mm
- Color
- Yellow
Cad Overall Width73 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0053352602, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0024927872, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Future Imap
- 13.51
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 16 %
- Material
- plastic
- Product Or Component Type
- guard
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- "ENVPEP2506049EN"
- Pep Verification Date
- 2023-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Accessory / Separate Part Destination
- Ø 40 mm emergency stop push-button
- Package Weight(Lbs)
- 42.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Range Of ProductHarmony XB4, Harmony XB5
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.1155021046
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.3434574514
Local Data StatusPublishable
Return IndicatorY
Future Msrp17.50
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content23 %
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.5 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionIt features a black blanking plug with seal and fixing nut. It is fitted for diameter 22,5mm cut-out.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Accessory / Separate Part Categoryprotection accessory
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Reach Regulation
- Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- "ENVPEP2506049EN"
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Verification Date
- 2023-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
Recycled Metal Content At Cr Level16 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.4667876032
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Pep Code"ENVPEP2506049EN"
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Range Of Product
- Harmony XB4, Harmony XB5
Product Or Component Typeguard
ETIM
- ETIM 8
- EC002024
ETIM 9EC002024
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
