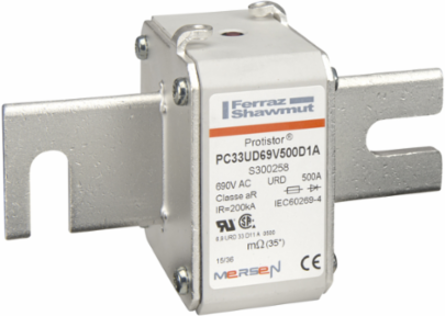

Mersen S300258 Square Body High-Speed Fuse Protistor® Size 33 aR 690VAC IEC 700VAC UL 500A With Striker DIN 110 Blades
Mersen S300258 Square Body High-Speed Fuse Protistor® Size 33 aR 690VAC IEC 700VAC UL 500A With Striker DIN 110 Blades
- MPN: S300258
- UPC: 3605340325898
- PPN: FER-S300258
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1110.96/ EA
Description
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Specifications
- Rated voltage AC UL
- 700 V
- Ampere Rating
- 500 A
- AC or DC
- AC
- Fuse Size
- 33
- Clearing I2t At Rated Voltage
- 110 kA²s
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Indication System
- Yes
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- Ceramic
- Width
- 2.87 in
- Height
- 3.09 in
Rated voltage AC IEC690 V
ROHS CompliantYes
Speed/CharacteristicaR
MountingBolted
Melting I2t19 kA²s
Design DetailsStandard Terminal
Indication System TypeStriker
Connection/Terminal TypeDIN 110 Blades
Power Dissipation at Rated Current Value105 W
Length5.3 in
Weight1.927 lb
