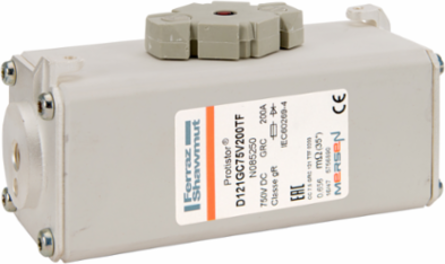

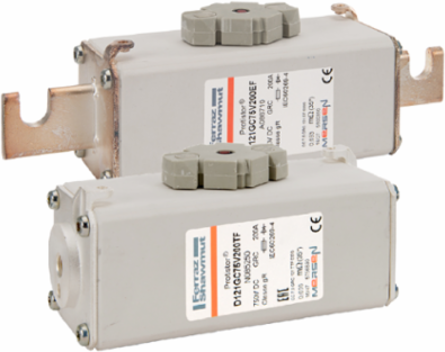

Mersen N085250 Square Body High-Speed Fuse Protistor® Size 121 gR 750VDC IEC 200A With Striker Flush ends metric threads

Square Body High-Speed Fuse Protistor® Size 121 gR 750VDC IEC 200A With Striker Flush ends metric threads
  • MPN: N085250
  • PPN: FER-N085250

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2603.80/ EA

Description

Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.

Specifications

Specifications

Rated voltage DC IEC
750 V
ROHS Compliant
Yes
Speed/Characteristic
gR
Mounting
Bolted
Max. Rated Breaking Capacity DC
100 kA
Indication System
Yes
Connection/Terminal Material
Silver-Plated Brass
Body/Insulating Material
Ceramic
Width
2.01 in
Height
2.17 in
Ampere Rating200 A
AC or DCDC
Fuse Size121
Melting I2t11.85 kA²s
Design DetailsgRC
Indication System TypeStriker
Connection/Terminal TypeFlush ends
Power Dissipation at Rated Current Value37.5 W
Length5.16 in
Weight1.94 lb
