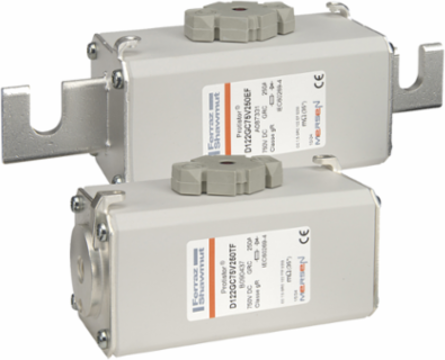

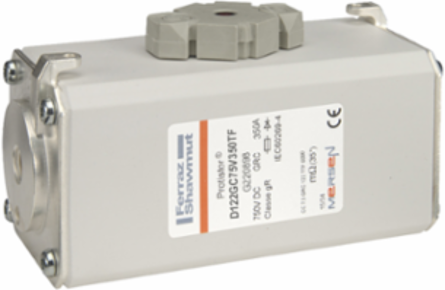

Mersen G220898 Square Body High-Speed Fuse Protistor® Size 122 gR 750VDC IEC 350A With Striker Flush ends metric threads

Square Body High-Speed Fuse Protistor® Size 122 gR 750VDC IEC 350A With Striker Flush ends metric threads
  • MPN: G220898
  • PPN: FER-G220898

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2809.41/ EA

Description

Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.

Specifications

Specifications

Rated voltage DC IEC
750 V
ROHS Compliant
Yes
Speed/Characteristic
gR
Mounting
Bolted
Max. Rated Breaking Capacity DC
100 kA
Indication System
Yes
Connection/Terminal Material
Silver-Plated Brass
Body/Insulating Material
Ceramic
Width
2.32 in
Height
2.48 in
Ampere Rating350 A
AC or DCDC
Fuse Size122
Melting I2t38.08 kA²s
Design DetailsgRC
Indication System TypeStriker
Connection/Terminal TypeFlush ends
Power Dissipation at Rated Current Value64.5 W
Length5.16 in
Weight3.153 lb
