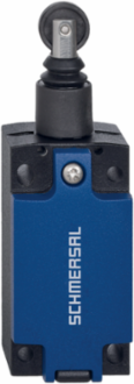

Schmersal 103015117 Position Switch PS315 Roller Plunger R300, IP67, Metal Enclosure, 117 mm Height

MPN: 103015117
PPN: SCM-103015117

$116.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Position Switch PS315 Roller Plunger R300, IP67, Metal Enclosure, 117 mm Height

Features

Metal enclosure
Quick connection technology as connection terminals rotated by 45°
Simple and quick to adjust the control elements by 45°.
cable entry 1 x M20 x 1,5
Design to EN 50041
LED version available

Documentation & Downloads

Specifications

Electrical data

Thermal test current	10 A
Utilisation category AC-15	240 VAC
Utilisation category DC-13	24 VDC

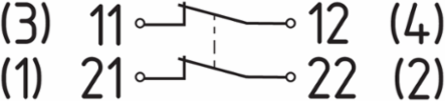

Switching element	2 NC contact
Switching frequency	5,000 /h

Required rated short-circuit current	400 A
Utilisation category AC-15	3 A
Utilisation category DC-13	3 A
Switching principle	Slow action
Material of the contacts, electrical	Silver

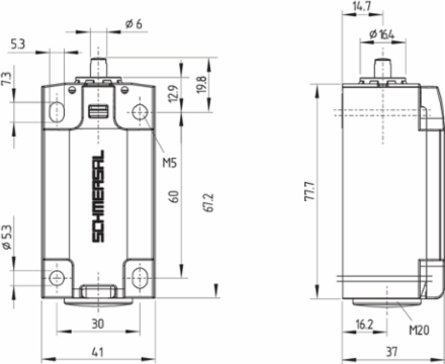

Mechanical data - Dimensions

Length of sensor	37 mm
Height of sensor	117 mm

Width of sensor	41 mm

Ambient conditions - Insulation values

Rated insulation voltage U	300 V
Degree of pollution	3

Rated impulse withstand voltage U	4 kV

Safety classification - Safety outputs

B	20,000,000 Operations

General data - Features

Number of safety contacts	2

General data

Standards	EN IEC 60947-5-1
Actuator type to EN 50041	C
Enclosure coating material	painted

Housing construction form	Norm construction design
Enclosure material	Metal, zinc die-cast
Gross weight	338 g

Safety classification

Mission time	20 Year(s)

Ambient conditions

Degree of protection	IP67 \| IP66
Protection class	I

Ambient temperature	-30 ... +80 °C

Mechanical data - Connection technique

Termination	Screw terminals M20 x 1.5
Cable section, maximum	1.5 mm²
Tightening torque of electrical connection, maximum	0.8 Nm

Cable section, minimum	0.34 mm²
Tightening torque of electrical connection, minimum	0.6 Nm

Mechanical data

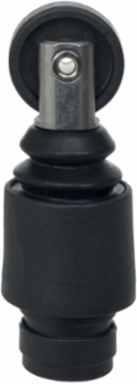

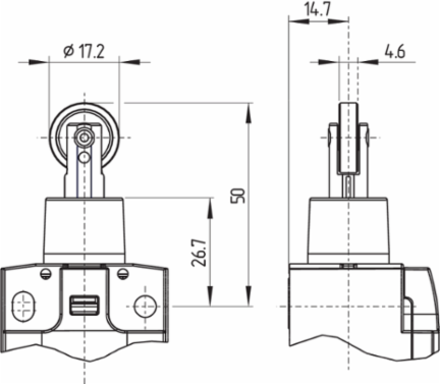

Actuating element	Roller plunger S300
Mechanical life, minimum	10,000,000 Operations
Actuating speed, minimum	60 mm/min
Tightening torque of the fixing screws	2 Nm

Roller material	Plastic
Positive break force, minimum	50 N
Actuating speed, maximum	0.5 m/s
Tightening torque of the fastening screws for the housing cover	2.6 Nm
