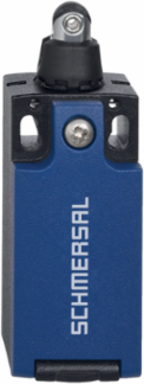

Schmersal 103014981 PS215 Roller Plunger Switch R200, Slow Action, IP67, Metal Enclosure, 85.6 mm Height

MPN: 103014981
PPN: SCM-103014981

$100.80

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PS215 Roller Plunger Switch R200, Slow Action, IP67, Metal Enclosure, 85.6 mm Height

Features

cable entry 1 x M20 x 1,5
Metal enclosure
Design to EN 50047
Quick connection technology as connection terminals rotated by 45°
Simple and quick to adjust the control elements by 45°.

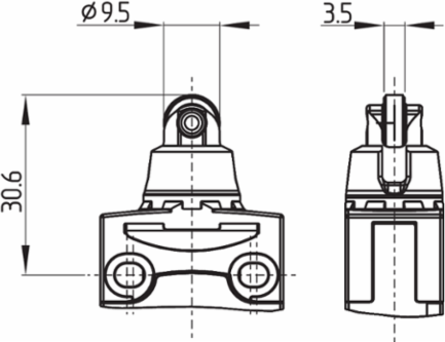

plastic roller Ø 9,5 mm
LED version available

Documentation & Downloads

Specifications

Electrical data

Thermal test current	10 A
Utilisation category AC-15	240 VAC
Utilisation category DC-13	24 VDC

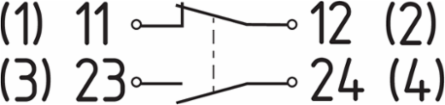

Switching element	1 NO contact, 1 NC contacts
Switching frequency	5,000 /h

Required rated short-circuit current	400 A
Utilisation category AC-15	3 A
Utilisation category DC-13	3 A
Switching principle	Slow action
Material of the contacts, electrical	Silver

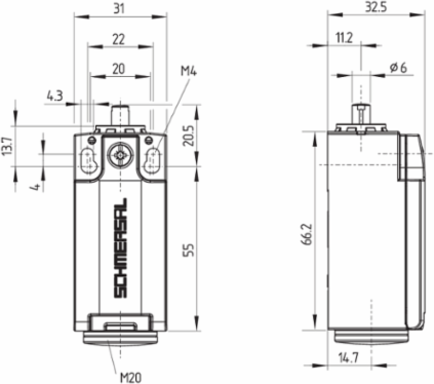

Mechanical data - Dimensions

Length of sensor	32.5 mm
Height of sensor	85.6 mm

Width of sensor	31 mm

Ambient conditions - Insulation values

Rated insulation voltage U	250 VAC
Degree of pollution	3

Rated impulse withstand voltage U	4 kV

Safety classification - Safety outputs

B	20,000,000 Operations

General data - Features

Safety functions	Yes
Number of safety contacts	1

Number of auxiliary contacts	1

General data

Standards	EN IEC 60947-5-1
Actuator type to EN 50047	c
Enclosure coating material	painted

Housing construction form	Norm construction design
Enclosure material	Metal, zinc die-cast
Gross weight	221 g

Safety classification

Mission time	20 Year(s)

Ambient conditions

Degree of protection	IP67 \| IP66
Protection class	I

Ambient temperature	-30 ... +80 °C

Mechanical data - Connection technique

Termination	Screw terminals M20 x 1.5
Cable section, maximum	1.5 mm²
Tightening torque of electrical connection, maximum	0.8 Nm

Cable section, minimum	0.34 mm²
Tightening torque of electrical connection, minimum	0.6 Nm

Mechanical data

Actuating element	Roller plunger R200
Positive break force, minimum	40 N
Actuating speed, maximum	0.5 m/s
Tightening torque of the fastening screws for the housing cover	2.6 Nm
