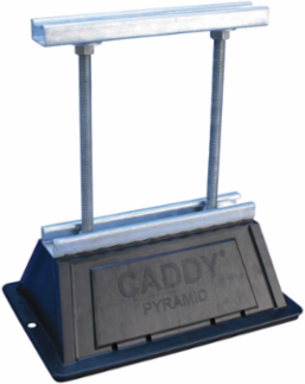

nVent Caddy PSA10CH13 Rooftop Pyramid ST Adjustable Strut Support, 10" x 6"–13"
- MPN: PSA10CH13
- UPC: 782856843030
- PPN: CAD-PSA10CH13
- UNSPSC: 30241504
CAD
$144.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Allows elevation changes of up to 18" (457 mm) off the roof surface with 10" or 16" (254 mm or 406 mm) of usable strut length. Hot-dip galvanized strut profile and hardware. 254 mm long, height adjustable from 152-330 mm.
Features
- Height adjustability provides effective navigation of pipe, conduit, duct and cable tray around obstructions
- Foam bottom offers low abrasion interface for better roof membrane protection
- Compatible with roof surfaces including single ply, bituminous, metal and spray foam
- Provides superior load distribution, even with varying rooftop surfaces
- Ready to use out of the box, saving installation time and labor
- Multiple sizes and load ratings offer the ability to tailor the solution to the application
- Hot-dip galvanized and UV stabilized for long lasting performance
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Static Load Safety Factor | 3:1 |
| Length 2 (L2) | 317.5 |
| Width (W) | 203 |
| Unit Weight | 2 |
| Static Load | 4,450 |
| Length | 12 1/2" |
| Thickness | 6" – 13" |
| Finish | Hot-Dip Galvanized |
| Temperature | -45 |
|---|---|
| Length 1 (L1) | 254 |
| Height (H) | 152 |
| Surface Area | 59,355 |
| Static Load (F) | 1,000 |
| Sub Brand | CADDY |
| Width | 8" |
| Material | Steel, Polypropylene, Polyethylene |
