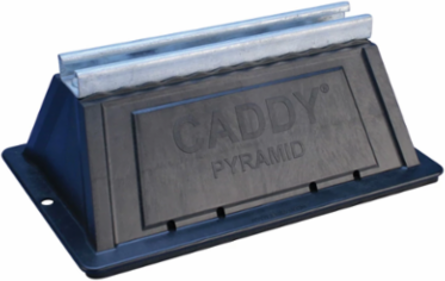

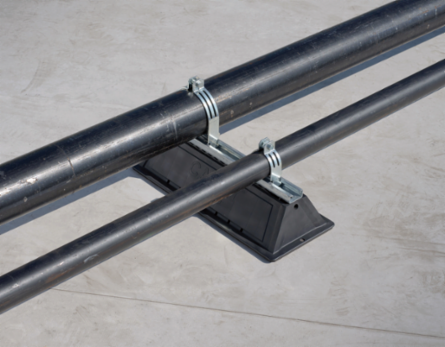

nVent Caddy PSF10C Rooftop Pyramid ST Fixed Strut Support, 10" x 4.8"
- MPN: PSF10C
- UPC: 782856843023
- PPN: CAD-PSF10C
- UNSPSC: 30241504
CAD
$62.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Provides a fixed-height mounting platform 4.8" or 6.4" (122 mm or 164 mm) off the roof surface with 6", 10", or 16" (152 mm, 254 mm, or 406 mm) of usable strut length. Hot-dip galvanized C-Profile Strut, 254 mm long, 122 mm high.
Features
- Effective load distribution across uneven surfaces
- Compatible with roof surfaces including single ply, bituminous, metal and spray foam
- Ready to use out-of-the-box, saving installation time and improving productivity
- Available in multiple sizes and load ratings for tailored applications
- Lightweight and easy to transport
- Hot-dip galvanized and UV stabilized for long-lasting performance
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Static Load Safety Factor | 3:1 |
| Length 2 (L2) | 317.5 |
| Width (W) | 203 |
| Unit Weight | 1 |
| Static Load | 4,450 |
| Length | 12 1/2" |
| Thickness | 4.8" |
| Finish | Hot-Dip Galvanized |
| Temperature | -45 |
|---|---|
| Length 1 (L1) | 254 |
| Height (H) | 122 |
| Surface Area | 59,355 |
| Static Load (F) | 1,000 |
| Sub Brand | CADDY |
| Width | 8" |
| Material | Steel, Polypropylene, Polyethylene |
