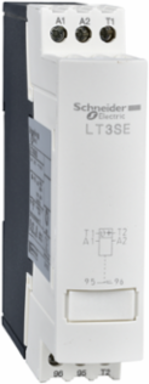

Schneider Electric LT3SE00BD Thermistor protection units, TeSys LT3, 250VAC 50/60Hz, 24VDC, 1NC, automatic reset
- MPN: LT3SE00BD
- PPN: SCH-LT3SE00BD
CAD
$382.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys LT3 thermistor protection unit for use with PTC probes, with automatic reset, single voltage supply 24V DC. To be used with a combination of PTC probes impedance lower than 1500 Ohm at 25°C, the trip impedance zone is 2700-3100 Ohm, the automatic reset impedance zone is 1500-1650 Ohm. It provides 1 auxiliary contact 1NC for fault signaling. DIN rail mounting, connections by cage terminals. PTC thermistor probes DA1TT, DA1TS available (to be ordered separately). Multi-standards certified (IEC, UL, CSA), Green Premium compliant (RoHs/Reach).
Documentation & Downloads
Specifications
Key Specifications
- Reset
- automatic reset
- Range Of Product
- LT3
- Device Short Name
- LT3SE
[Uc] Control Circuit Voltage24 V DC
Product Or Component Typethermistor protection units
Complementary
- Contacts Type And Composition
- 1 NC single voltage
- Height
- 100 mm
- Tightening Torque
- 0.8 N.m
- [Ue] Rated Operational Voltage
- 250 V AC 50/60 Hz output control relay
- Hold-In Power Consumption In Va
- 2.5-2.5 VA
- Signalling Function
- without
- Connections - Terminals
- power circuit cage type connector 1 0.75-2.5 mm²flexible with cable end || power circuit cage type connector 1 0.75-2.5 mm²solid with cable end || power circuit cage type connector 1 1-2.5 mm²flexible without cable end || power circuit cage type connector 1 1-2.5 mm²solid without cable end || power circuit cage type connector 2 0.75-2.5 mm²flexible with cable end || power circuit cage type connector 2 0.75-2.5 mm²solid with cable end || power circuit cage type connector 2 1-2.5 mm²flexible without cable end || power circuit cage type connector 2 1-2.5 mm²solid without cable end
- Probe Interchangeability
- label mark A IEC 60034-11
- [Ui] Rated Insulation Voltage
- output control relay 500 V AC
- Hold-In Power Consumption In W
- 1-1 W
- Depth
- 100 mm
- Input Voltage
- < 2.5 V 1500 Ohm) for probe || < 7.5 V 4000 Ohm) for probe IEC 60034-11
Control Circuit Voltage Limits0.8...1.25 Uc
[Ith] Conventional Free Air Thermal Current5 A output control relay
[Uimp] Rated Impulse Withstand Voltage2.5 kV
Condition Of Useconnection of probes 400 m >1 mm² || connection of probes 300 m >0.75 mm²
Resistance1500-1650 Ohm reset || 2700-3100 Ohm tripping
Rated Power In Va100 VA 220 V 500000 cycles
Net Weight0.22 kg
Control Typeautomatic reset
Number Of Probes0-6
Width22.5 mm
Maximum Short Circuit Detection Resistance20 Ohm
Breaking Capacity2 A 24 V DC DC-13 || 3 A 250 V AC AC-16 || 6 A 120 V AC AC-16
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectiveCompliant
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Electromagnetic Compatibility
- resistance to electrostatic discharge level 3 IEC 61000-4-2 || resistance to fast transient level 3 IEC 61000-4-4 || surge resistance 1.2/50-8/20 level 4 IEC 61000-4-5 || susceptibility to electromagnetic fields level 3 IEC 61000-4-3 || immunity to microbreaks and voltage drops IEC 61000-4-11
- Ip Degree Of Protection
- IP20 IEC 60529 || IP20 VDE 0106
- Ambient Air Temperature For Storage
- -40-85 °C IEC 60068-2-1 || -40-85 °C IEC 60068-2-2
StandardsIEC 60947-8 || IEC 60034-11 || VDE 0660
Shock Resistance5 gn 11 ms IEC 60068-2-27
Vibration Resistance1 gn 25...150 Hz IEC 60068-2-6 || 2.5 gn 2...25 Hz IEC 60068-2-6
Operating Altitude<= 1500 m without derating in temperature || > 1500...3000 m with derating in temperature
