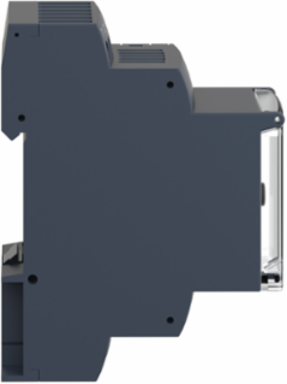

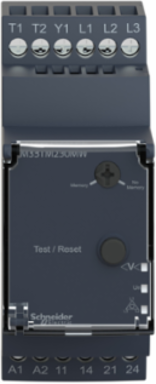

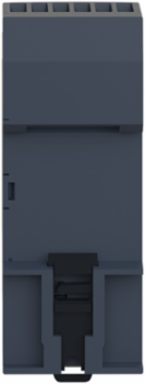

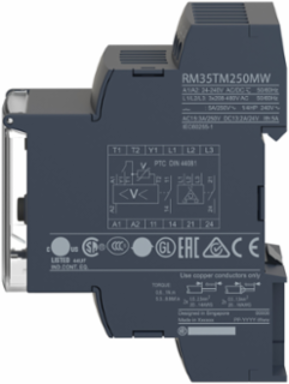

Schneider Electric RM35TM250MW Harmony Control Relay, 5A, 2NO, 24-240V AC/DC, 35mm
- MPN: RM35TM250MW
- PPN: SCH-RM35TM250MW
CAD
$288.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RM35-T control relay allows monitoring of motor voltage and temperature control. This modular control relay is ideal for monitoring of electrical values with voltage and temperature variation in control of moving equipment's. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia, United States |
|---|
| Depth | 72 mm |
|---|
Complementary Attributes
| Maximum Switching Current | 5 A AC, 5 A DC |
|---|---|
| Line Rated Current | 5 A |
| Maximum Resistance | 1500 Ohm temperature sensor 20 °C |
| Minimum Switching Current | 10 mA 5 V DC |
| Control Circuit Frequency | 50...60 Hz +/- 10 % |
|---|---|
| Maximum Power Consumption In W | 0.5 W DC |
| Maximum Switching Voltage | 250 V AC |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Insulation Resistance | > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 |
| Measurement Range | 208...480 V AC, 15...3100 Ohm |
| Response Time | > 50 ms (input Y1 (contact Y1-T1) and push-button), > 50 ms (input Y1 (contact Y1-T1) and push-button)> 50 ms (input Y1 (contact Y1-T1) and push-button), > 50 ms (input Y1 (contact Y1-T1) and push-button) |
| Vibration Resistance | 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1 |
| [Uc] Control Circuit Voltage | <= 3.6 V temperature control circuit T1-T2 terminals open), <= 3.6 V temperature control circuit T1-T2 terminals open), <= 3.6 V temperature control circuit T1-T2 terminals open)<= 3.6 V temperature control circuit T1-T2 terminals open), <= 3.6 V temperature control circuit T1-T2 terminals open), <= 3.6 V temperature control circuit T1-T2 terminals open), 24...240 V |
| Carbon Footprint Of The Distribution Phase [A4] | 0.017261169284467713, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.04282993019197207, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 20 kg CO2 eq., 20.104799999999997 |
| Local Publishable Date | 2026-04-09 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1601004EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1918 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | RM3 |
| Control Type | with test button |
| Electrical Durability | 100000 cycles |
| Housing Material | polycarbonate |
| Measurement Voltage Limits | 176-528 V AC |
| Mounting Support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Overvoltage Category | III conforming to IEC 60664-1 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Specific Application | for 3-phase supply |
| Relay Name | RM35TM |
| Reset Threshold | 1650 Ohm +/- 10 % temperature control circuit |
| Resistance Across Terminals | 602 kOhm |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Tightening Torque | 0.6-1 N.m IEC 60947-1 |
| Total Lifecycle Carbon Footprint | 29 kg CO2 eq. |
| Pep Code | ENVPEP1601004EN |
| Pep Verification Date | 2025-02-23 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 90 mm |
| [Ui] Rated Insulation Voltage | 400 V IEC 60664-1 |
| Short-circuit Current | 0.007 A temperature sensing circuit T1-T2 terminals short circuited) |
| Package Weight(Lbs) | 130.000 g |
| Warranty (In Months) | 18 |
| Customs Code | 8536490075 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Signalling | LED (green) for power ONLED (yellow) for phase of relay (R2), LED (yellow) for temperature of relay (R1) |
| Relay Monitored Parameters | phase failure detection, phase sequence, test/reset button, motor temperature via PTC probe, selection (with or without memory) |
| Supply Voltage Limits | 20.4-264 V AC, 20.4-264 V DC |
| Certificate Agency | CSA, C-tick, GOST, UL, GL |
| Connections - Terminals | screw connectors, screw terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...12 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.2 kg CO2 eq., 0.24780715532286213 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 9 kg CO2 eq., 8.88849912739965 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 2 NO |
| Dielectric Test Voltage | 2 kV AC 50 Hz, 1 min |
| Electromagnetic Compatibility | emission standard for industrial environments conforming to IEC 61000-6-4emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3immunity for industrial environments conforming to IEC 61000-6-2 |
| Marking | CE |
| Mechanical Durability | 30000000 cycles |
| Operating Position | any position without derating |
| Power Consumption In Va | 0-4 VA 24...240 V AC |
| Product Or Component Type | motor temperature control relay |
| Range Of Product | Harmony Control Relays |
| Relay Type | motor temperature control relay |
| Reset Time | 10000 ms output |
| Returnability | Yes |
| Supply Frequency | 50/60 Hz +/- 10 % |
| Switching Capacity In Va | 1250 VA |
| Time Delay Type | without |
| Tripping Threshold | 3100 Ohm +/- 10 % temperature control circuit |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | RM35 relay used to measure and monitor the abnormal operating& 10conditions such as on current, voltage, frequency, phase, speed, temperature and liquid level that the machine will not be allowed to run when a fault is occurred. It allows the user to initiate the necessary corrective actions before serious and costly breakdowns can occur.This product will be in 80% active mode with power consumption of 1W during 10 years of lifetime, adhering to IEC 60255-1 standard. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; ID |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 8 |
| Width Nominal | 35 mm |
| [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Water Use (M3 Eq) Manufacturing [A1-a3] | 1.925 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 29.30119738219895 |
| Circularity Profile | ENVEOLI1601004EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1601004EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Directives | 73/23/EEC - low voltage directive, 89/336/EEC - electromagnetic compatibility |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -20-50 °C-20-50 °C |
| Environmental Disclosure | ENVPEP1601004EN |
| Ip Degree Of Protection | IP20 IEC 60529 terminals)IP30 IEC 60529 casing) |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 95-95 % 55-55 °C IEC 60068-2-30 |
| Pep Verification Date | 2025-02-23 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | motor temperature control relay |
|---|
| Range Of Product | Harmony Control Relays |
|---|
ETIM
| ETIM 8 | EC001446 |
|---|
| ETIM 9 | EC001446 |
|---|
Output Attributes
| Nominal Output Current | 5 A |
|---|
| Output Contacts | 2 NO |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
