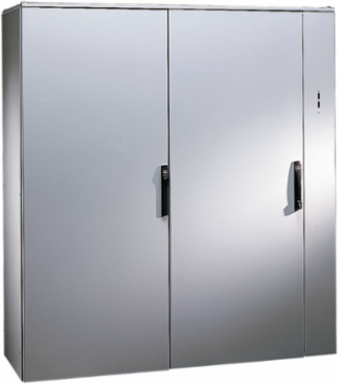

nVent Hoffman PTDDC16165 ProLine-DD Disconnect Enclosure Type 12, 1600x1600x500, Lt Gray, Steel
nVent Hoffman PTDDC16165 ProLine-DD Disconnect Enclosure Type 12, 1600x1600x500, Lt Gray, Steel
- MPN: PTDDC16165
- UPC: 783510298722
- PPN: HOF-PTDDC16165
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
ProLine Disconnect Packages are ready-to-use enclosures offering flange-mount disconnect solutions. This ProLine-DD Disconnect Enclosure Type 12, PTDDC16165 item measures 1600x1600x500mm with material of Steel colored Lt Gray.
Features
- Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard
- Standard door bars increase strength and rigidity and allow for an extra mounting options
- Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
- Gasket and latching system together ensure a solid seal with low closure force
- Mullion door is hinged on the right, with primary and secondary doors hinged on the left
- Galvanized mounting plate in 3.0mm steel supplied standard
- Capped ground studs on door, rear and top panel
- Integral frame channels support the full weight of the mounting plates
- Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
- Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
- Rear panel(s) and solid top 1.5 mm, carbon steel powder painted; RAL 7035
- Compatible with any of the standard flange-mounted disconnect switches and mechanisms described in the Preferred Cutout Overview section.
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,600
- Protection Rating
- NEMA Type 12
- Material
- Mild Steel
- Color
- Light Gray
- Thickness (T)
- 1.9
- IP Rating
- IP55
- Weight
- 237
Height (H)1,600
Depth (D)500
Product FamilyProLine
FinishPowder Coated
Color CodeRAL 7035
Cutout TypeSmall
NEMA Rating12 Indoor, dust-resistant
Sub BrandProLine
