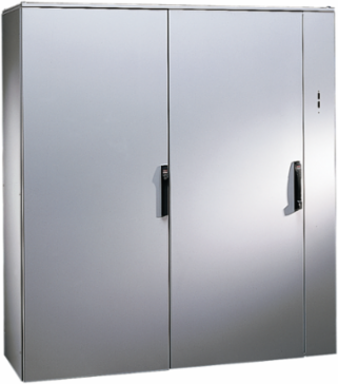

nVent Hoffman PTDLDC20186 ProLine-DD Disconnect Enclosure Type 12 Lg Cutout, 2000x1800x600, Lt Gray, Steel
- MPN: PTDLDC20186
- UPC: 783510286941
- PPN: HOF-PTDLDC20186
- UNSPSC: 39121334
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ProLine Disconnect Packages are ready-to-use enclosures offering flange-mount disconnect solutions. This ProLine-DD Disconnect Enclosure Type 12 Lg Cutout, PTDLDC20186 item measures 2000x1800x600mm with material of Steel colored Lt Gray.
Features
- Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard
- Standard door bars increase strength and rigidity and allow for an extra mounting options
- Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
- Gasket and latching system together ensure a solid seal with low closure force
- Mullion door is hinged on the right, with primary and secondary doors hinged on the left
- Galvanized mounting plate in 3.0mm steel supplied standard
- Capped ground studs on door, rear and top panel
- Integral frame channels support the full weight of the mounting plates
- Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
- Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
- Rear panel(s) and solid top 1.5 mm, carbon steel powder painted; RAL 7035
- Compatible with any of the standard flange-mounted disconnect switches and mechanisms described in the Preferred Cutout Overview section.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 1,800 |
| Protection Rating | NEMA Type 12 |
| Finish | Powder Coated |
| Thickness (T) | 1.9 |
| IP Rating | IP55 |
| Weight | 40 |
| Material | Steel |
| Color | Lt Gray |
| Height (H) | 2,000 |
|---|---|
| Depth (D) | 600 |
| Product Family | ProLine |
| Color Code | RAL 7035 |
| Cutout Type | Large |
| NEMA Rating | 12 Indoor, dust-resistant |
| Sub Brand | ProLine |
| Size | 2000x1800x600mm |
