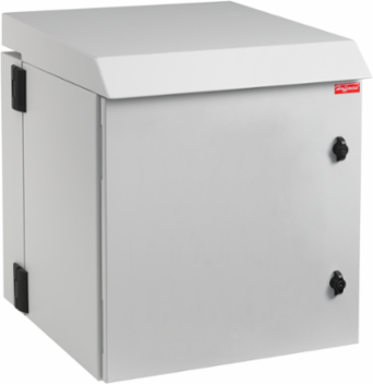

nVent Hoffman PTHS362424G3 ProTek Double-Hinge Fan Package Solid Type 3R, 36.30x23.62x24.02, Lt Gray, Steel
- MPN: PTHS362424G3
- UPC: 783510236274
- PPN: HOF-PTHS362424G3
- UNSPSC: 43223306
CAD
$4292.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ProTek Double-Hinged Fan Packages protect wall-mounted equipment in various environments. This ProTek Double-Hinge Fan Package Solid Type 3R, PTHS362424G3 item measures 36.30x23.62x24.02in. with a material of Steel color Lt Gray.
Features
- Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
- Solid door provides complete physical and visual protection
- Integral top solar/drip shield
- Two thermostatically controlled, long-life, high-performance fans mounted into top
- Window door, made of .25-inch scratch-resistant safety glass and mechanically fastened, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Perforated, vented base with internal, expanded metal, serviceable filter
- Door, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob provides access control to the cabinet; two keys are included with each cabinet
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, adjustable front-to-back within the center section of the cabinet
- Additional rack angles in tapped- or square-hole versions can be added to the cabinet
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Product Family
- ProTek
- Body Thickness
- 1.9
- Rack Units
- 19
- IP Rating
- IP32
- Sub Brand
- ProTek
- Width
- 23.62 in
- Material
- Steel
- Color
- Lt Gray
Height (H)922
Depth (D)610
Color CodeRAL 7035
Door Thickness1.52
Additional Rack AnglesPTRA36T or PTRA36S
Weight154
Height36.3 in
Depth24.02 in
FinishLt Gray
NEMA Rating3R Weather-resistant, except dust
