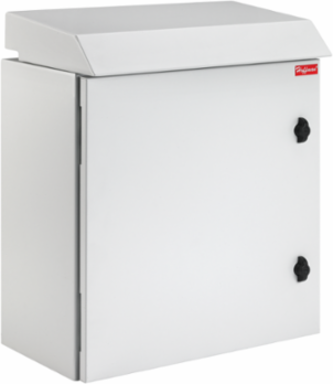

Nvent Hoffman PTRS362424G3 ProTek 1-Door Solid Fan Package Type 3R, 36.30x23.62x24.02, Lt Gray, Steel
Nvent Hoffman PTRS362424G3 ProTek 1-Door Solid Fan Package Type 3R, 36.30x23.62x24.02, Lt Gray, Steel
- MPN: PTRS362424G3
- UPC: 783510235956
- PPN: HOF-PTRS362424G3
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3663.69/ EA
Description
ProTek Single-Door Fan Packages protect wall-mounted equipment in various environments. This ProTek 1-Door Solid Fan Package Type 3R, PTRS362424G3 item measures 36.30x23.62x24.02in. with a material of Steel colored Lt Gray.
Features
- Solid-door cabinet provides complete physical and visual protection
- Integral top solar/drip shield
- Two thermostatically-controlled, long-life, high-performance fans mounted into top
- Perforated, vented base with internal, expanded metal, serviceable filter
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Door and body are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob provides access control to the cabinet; two keys are included with each cabinet
- Additional rack angles in tapped and square-hole versions can be added to the cabinet
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each cabinet
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Product Family
- ProTek
- Body Thickness
- 1.9
- Rack Units
- 19
- IP Rating
- IP32
- Sub Brand
- ProTek
- Width
- 23.62 in
- Material
- Steel
- Color
- Lt Gray
Height (H)922
Depth (D)610
Color CodeRAL 7035
Door Thickness1.52
Additional Rack AnglesPTRA36T or PTRA36S
Weight145
Height36.3 in
Depth24.02 in
FinishLt Gray
NEMA Rating3R Weather-resistant, except dust
