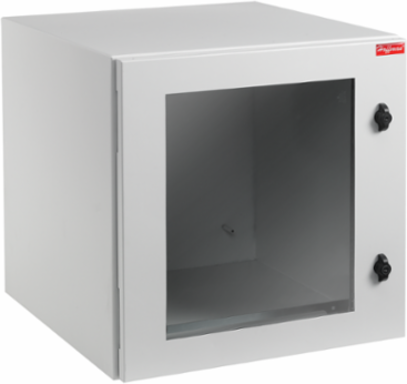

Nvent Hoffman PTRW242424G2 ProTek Single-Door Window Type 4 12, 24.09x23.62x24.02, Lt Gray, Steel
Nvent Hoffman PTRW242424G2 ProTek Single-Door Window Type 4 12, 24.09x23.62x24.02, Lt Gray, Steel
- MPN: PTRW242424G2
- UPC: 783510235857
- PPN: HOF-PTRW242424G2
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2017.08/ EA
Description
ProTek Single-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Single-Door Window Type 4 12, PTRW242424G2 item measures 24.09x23.62x24.02in. with a material of Steel colored Lt Gray.
Features
- Solid-door cabinet provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Protection Rating
- NEMA Type 12
- Color Code
- RAL 7035
- Rack Units
- 12
- IP Rating
- IP55
- Sub Brand
- ProTek
- Width
- 23.62 in
- Material
- Steel
- Color
- Lt Gray
Height (H)612
Depth (D)610
Product FamilyProTek
Thickness (T)1.9
Additional Rack AnglesPTRA24T or PTRA24S
Weight92
Height24.09 in
Depth24.02 in
FinishLt Gray
NEMA Rating12 Indoor, dust-resistant
