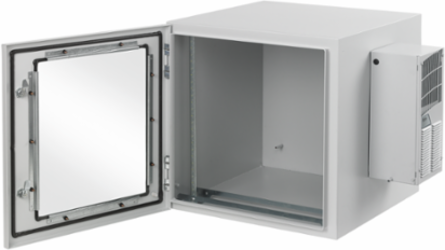

nVent Hoffman PTRW482424G2A ProTek Single-Door Window AC Type 4 12, 48.54x23.62x24.02, Lt Gray, Steel
- MPN: PTRW482424G2A
- UPC: 783510236083
- PPN: HOF-PTRW482424G2A
- UNSPSC: 43223306
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ProTek Single-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Single-Door Window AC Type 4 12, PTRW482424G2A item measures 48.54x23.62x24.02in. with a material of Steel colored Lt Gray.
Features
- Solid-door cabinet provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Protection Rating
- NEMA Type 12
- Color Code
- RAL 7035
- Rack Units
- 26
- IP Rating
- IP55
- Weight
- 205
- Material
- Steel
- Color
- Lt Gray
Height (H)1,233
Depth (D)610
Product FamilyProTek
Thickness (T)1.9
Additional Rack AnglesPTRA48T or PTRA48S
NEMA Rating12 Indoor, dust-resistant
Sub BrandProTek
FinishLt Gray
