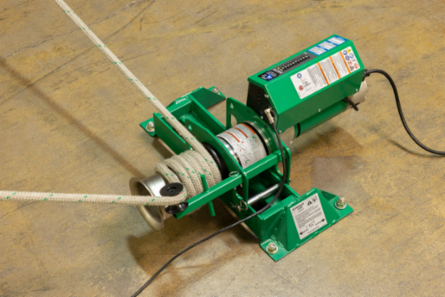

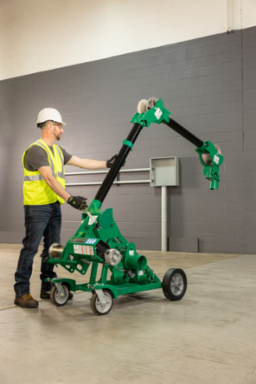

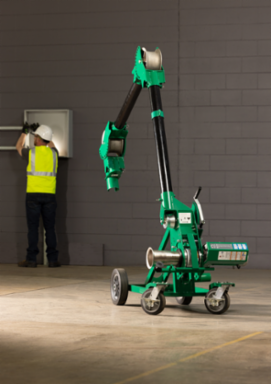

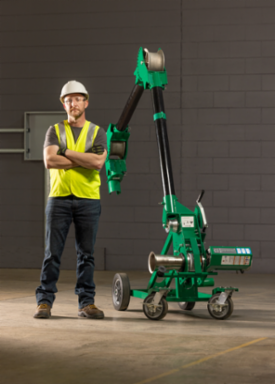

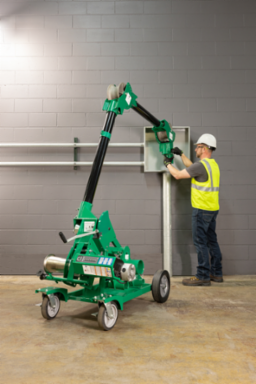

Greenlee GX10-MVBA GX10 10k Tugger™ Package with Mobile VersiBoom™
- MPN: GX10-MVBA
- UPC: 783310001829
- PPN: GRN-GX10-MVBA
- UNSPSC: 72141122
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

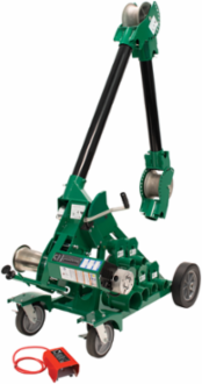

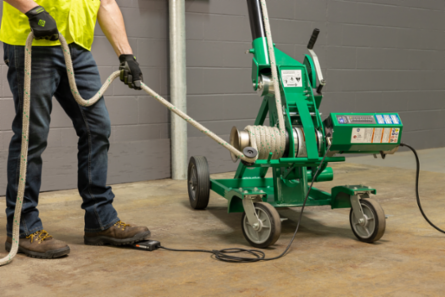

GX10 10k Tugger™ Package with Mobile VersiBoom™
Features
- Faster pulls up to 10,000 lbs at a high continuous pulling force
- Multi-purpose heavy-duty foot switch allows hands-free speed and operation control

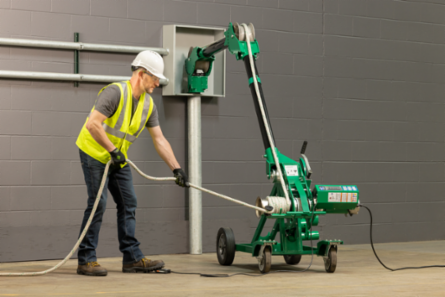

- Right angle sheave keeps operators safely out of the direct line of pulls
- Adaptable mount options for built-in versatility
- GX10 is compatible with Greenlee UT10 mounts, foot pedals and accessories

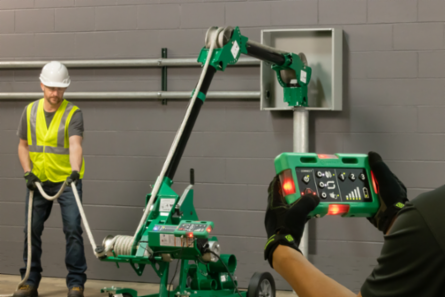

- Multi-purpose footswitch controls speed and start/stop operation, keeping the operator out of the line of fire
- Sets up in less than 2 minutes and can be used in every pulling situation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Length | 50 IN / 1270 MM |
| Weight | 390 LB / 176.87075 KG |
| Min Operating Temperature | -5 F / -20.55556 C |
| Color | Green, Black |
| Material | Steel |
| Number of Handles | 1 |
| Capacity Min | 0 MM |
| Cord Length | 8.17 FT / 2.49022 MT |
| Kit Includes | GX10, G-294, MVB, GPC03 |
| Width | 30 IN / 762 MM |
|---|---|
| Height | 74 IN / 1879.6 MM |
| Product Warranty | 12 |
| Max Operating Temperature | 95 F / 35 C |
| Shape | Rectangle |
| Power | AC |
| Handle Type | Normal |
| Capacity Max | 0 MM |
| Load | 10,000 lbs. peak pulling force with a continuous pulling rating of 6,500 lbs. |
| Accessories Included | 00563 Adapter Weldment - 2" Adapter Weldment 00564 Adapter Weldment - 2 - 1/2" Adapter Weldment 00565 Adapter Weldment - 3" Adapter Weldment 00566 Adapter Weldment - 3 - 1/2" Adapter Weldment 00567 Adapter Weldment -4" Adapter Weldment 00610 Adapter Weldment -5" Adapter Weldment |
Regulations
| SDS Required | No |
|---|---|
| CA Prop 65 Reproductive Harm | Yes |
| RoHS Regulations | Yes |
| CA Prop 65 Cancer | Yes |
|---|---|
| CA Prop 65 Chemcial Names | LEAD |
| REACH Compliant | No |
Motor Information
| Type | DC Brushed Permanent Magnet |
|---|---|
| Wattage | 2280 |
| Horsepower | 2 |
| Torque | 15600 INP / 1762 NTM |
| Voltage | 120 VLT |
|---|---|
| Amperage | 19 |
| RPM | 18 |
Battery Information
| Included | No |
|---|
| Required | No |
|---|
