Klein Tools 1659-5AT Chicago Grip Type B Puller for 1/4 Inch Telephone Cable, 5000 lb Capacity
- MPN: 1659-5AT
- UPC: 092644471209
- PPN: KLT-1659-5AT
- UNSPSC: 46182308
CAD
$1226.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

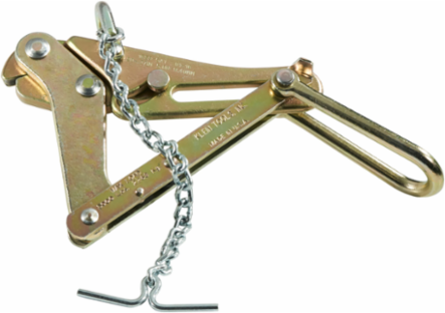

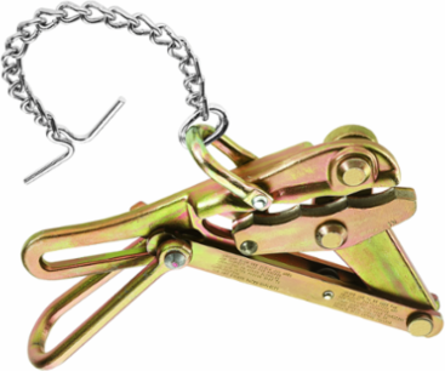

The Klein Tools 1659-5AT Chicago Grip is similar to a Bell-System type B Strand Puller. It is designed to pull 1/4-Inch figure-8 telephone cable. Plus, it is equipped with a chain, toggle and shackle to keep the grip from falling off the cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Features
- Similar to Bell-System type ''B'' strand puller
- Designed to pull 1/4-Inch (6.35 mm) figure-8 telephone cable
- 0.20-Inch to 0.37-Inch (5.08 to 9.40 mm) cable diameter range with max safe load of 5000-Pound (2268 kg)
- Serpentine grooves grip insulation on strand, preventing slippage
- Made in USA

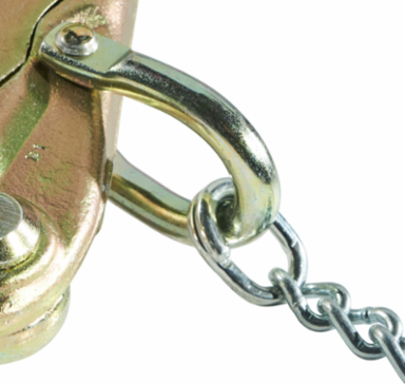

- Equipped with chain, toggle, and shackle
- "B" Strand Puller -- Equipped With a Chain, Toggle and Shackle
Documentation & Downloads
Specifications
Key Specifications
- Cable Type
- Messenger, Guy Strand
- Type
- Chicago Grip
- Application
- Wire Pulling
- Locking Handle
- Yes
- Spring
- Yes
- Teeth Type
- Serpentine
- Jaw Length (cm)
- 12.7
- Jaw Length (Inch)
- 5
- Weight (lb)
- 6.7
- Width
- 7.0000 in
- Weight
- 0.1000 lbs
Jaw TypeRound
MaterialSteel
Cable Diameter0.2" to 0.37" (5.08 to 9.4 mm)
Hot LatchNo
Swing LatchNo
Weight (kg)3
Maximum Safe Load (kg)2268
Maximum Safe Load (lb)5000
Height1.7600 in
Depth10.0000 in
