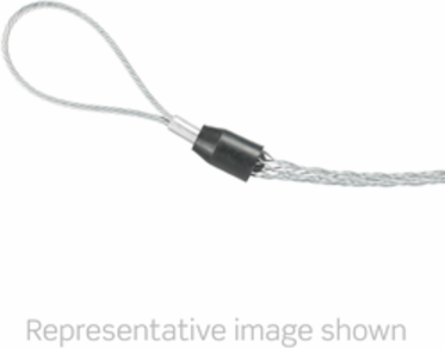

Leviton L8502-100 Pulling Grip, 0.50-0.61"
- MPN: L8502-100
- UPC: 078477213759
- PPN: LEV-L8502-100
CAD
$76.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pulling, Flexible Eye, Junior Pulling Grip, Galvanized Steel, 0.50"-0.61" Cable Diameter Range - Breakload is 1300 LBS
Features
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
- All pulling grip designs are fully tested to meet published break ratings without slipping
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | India |
|---|
| RoHS Compliant | True |
|---|
Material Specifications
| Mesh Material | Galvanized |
|---|
Mechanical Specifications
| Approx. Break Strength | 1,300lb |
|---|---|
| Cable Range | 0.50"-0.61" |
| Eye Type | Flex Eye |
| Mesh Style | Closed |
| Weave | Single Weave |
| Bale Length | 3 in (76.2 mm) |
|---|---|
| Duty | Light |
| Mesh Length | 8.5" |
| Standards and Certifications | UL |
| Workload Safety Factor (lbs) | 433 lbs @ 3:1 (197 kgs @ 3:1) |
Product Features
| Device Type | Pulling Grip |
|---|
Warranty
| Warranty | 1-Year Limited |
|---|
