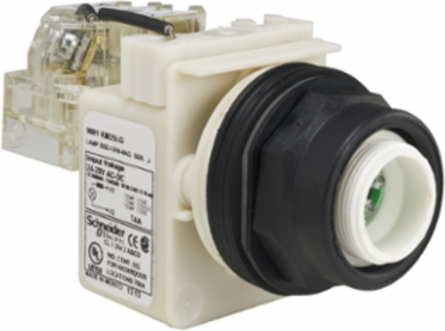

Square D 9001SKT35LG Harmony Push-to-Test Pilot Light Head 30mm Green LED 24-28V
- MPN: 9001SKT35LG
- UPC: 785901413288
- PPN: SCH-9001SKT35LG
CAD
$253.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Harmony Push-to-Test Pilot Light Head from Schneider Electric stands out with its vibrant green LED lighting, designed to operate within a voltage range of 24-28V. This 30mm device not only serves as an effective visual indicator in automation and control applications but also features a push-to-test function, allowing for easy verification of operational status. Ideal for various industrial settings, its durability and clarity make it an essential component for pilot devices, ensuring reliable performance and enhanced safety in your operations.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24...28 V AC/DC
- Light Source
- green LED
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- Rated Impulse Withstand Voltage
- 2.5 kV EN/IEC 60947-1
- Size
- 30 mm
- CAD Overall Height
- 70 mm
- Net Weight
- 0.181 kg
- Operating Mode
- push-to-test
- Cap/Operator or Lens Colour
- without cap
- Tightening Torque
- 0.8 N.m EN/IEC 60947-1
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mmB2 EN/IEC 60947-1
- Light Block Supply
- direct 24...28 V AC/DC
- Protective Treatment
- TC
- NEMA Degree of Protection
- NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock Resistance
- 50 gn IEC 60068-2-27
- Product Certifications
- UL 508, NEMA
- Device Short Name
- 9001SK
- Range of Product
- Harmony 9001SK
- Toxic Heavy Metal Free
- Yes
- China Rohs Regulation
- X
- Reach Free of SVHC
- Yes
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI121109EN
Ambient Air Temperature for Operation-25 to 70 B0C
Conventional Free Air Thermal Current10 A
Rated Insulation Voltage250 V EN/IEC 60947-1
Contacts Type and Composition1 C/O
CAD Overall Width54 mm
CAD Overall Depth42 mm
Materialplastic (Bezel material)
Shape of Signaling Unit Headround
Bulb BaseBA 9s
Shape of Screw Headcross slotted
Operating Positionany position
Electrical Shock Protection ClassClass II IEC 61140
IP Degree of ProtectionIP66 IEC 60529
Vibration Resistance7 gn 2-500 Hz IEC 60068-2-6
Ambient Air Temperature for Storage-40 to 70 B0C
StandardsJIS C 852, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-1, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-1
Product or Component Typehead for push-to-test pilot light
Rohs Exemption InformationYes
Toxic Free Heavy MetalYes
Environmental DisclosureENVPEP121113EN
Reach RegulationFree of SVHC above threshold
Weee DisposalMust be disposed per EU waste collection
