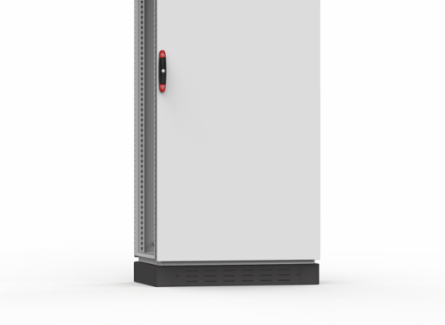

nVent Hoffman PV1080 Ventilated Front/Rear Plinths, PV, 100x798x62mm, Zinc Plated, Mild Steel
- MPN: PV1080
- UPC: 783510526740
- PPN: HOF-PV1080
- UNSPSC: 39121334
CAD
$482.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ventilated Front/Rear Plinths, PV allows for cabling without any restrictions in accordance with VDE0113 standards. This Ventilated Front/Rear Plinths, PV, PV1080 item measures 100x798x62mm with a material of Mild Steel, finish Zinc Plated.
Features
- Description: Front and rear plinth sections with ventilated panels. Recommended to be used in combination with the ventilated bottom plate CVB. For cabling without any restrictions and in accordance with the VDE 0113 standard. The plinth consists of four corner pieces with removable front covers. All panels have double returns for added strength. Only available in height of 100 mm.
- Material: Corner pieces in 2 mm and panels in 1.5 mm mild steel.
- Finish: RAL 7022 structured powder coating.
- Pack quantity: 1 set of 4 corner pieces including covers. Front and rear panel with mounting accessories for side panels PS or transversal profiles PCP.
- Mounting requirements: Add the side panels PS for a complete plinth. When combining enclosures it is recommended to add transversal panels PCP for cable duct support and extra rigidity. Use ventilated bottom plates CVB to get better enclosure ventilation.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 800
- Works With
- IEC
- Product Family
- Free-Standing
- Color Code
- RAL 7022
- Package Quantity
- 2
- Material
- Mild Steel
- Color
- RAL 7022 Umbra Gray
Height (H)100
Depth (D)62
Enclosure MaterialMild Steel
FinishPowder Coated
Thickness (T)1.5
Weight4.8
Size3.94 x 31.42 x 2.44 inch
Construction16 gauge
