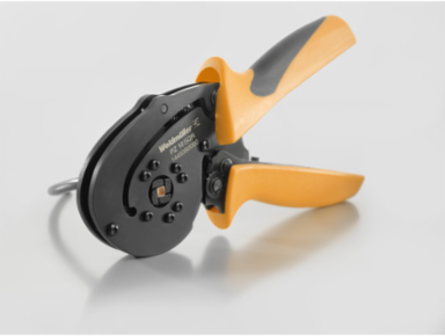

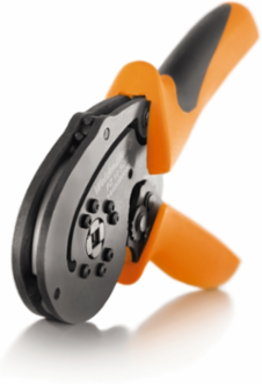

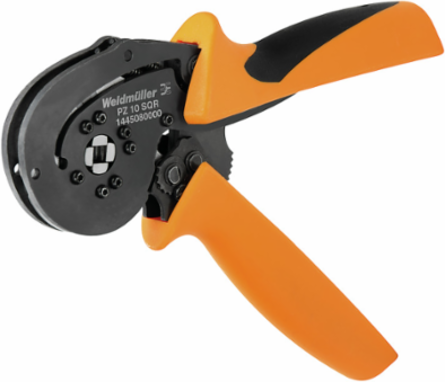

Weidmuller 1445080000 PZ 10 SQR

PZ 10 SQR - https://media.province-electric.com/web-weidmueller/2019q4/2f33045f1caa94aa5296df3ba85e8da1e4809f98-medium.png

PZ 10 SQR - https://media.province-electric.com/web-weidmueller/2019q4/5e496d87b4e6b2fe98b4c62640be2c07f094cee1-medium.png

PZ 10 SQR - https://media.province-electric.com/web-weidmueller/2019q4/74aa3ae142ad08cd7d5e81f01b7ab04064771d3d-medium.png

PZ 10 SQR

PZ 10 SQR

PZ 10 SQR

PZ 10 SQR

Weidmuller 1445080000 PZ 10 SQR

MPN: 1445080000
PPN: WDM-1445080000

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$370.64/ EA

Loading add to cart quantity...

Description

Crimping tool for wire-end ferrules, 0.14mm², 10mm², Square crimp

Specifications

Dimensions And Weights

Width: 195 mm

Weight: 600 g

Width (inches)7.677 inch

Net weight605 g

Classifications

ETIM 6.0: EC000168

eClass 9.0: 21-04-38-11

eClass 10.0: 21-04-38-11

ETIM 7.0EC000168

eClass 9.121-04-38-11

Environmental Product Compliance

REACH SVHC: Lead 7439-92-1

Tool Data Crimping

Crimping type/profile: Square crimp

Description Of Contact

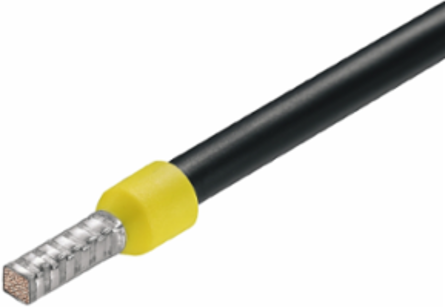

Type of contact: Wire-end ferrules with/without plastic collars

Crimping range, max.: 10 mm²

Conductor cross-section, min. AWG: AWG 26

Crimping range, min.0.14 mm²

Conductor cross-section, max. AWGAWG 8

Downloads
