Weidmuller

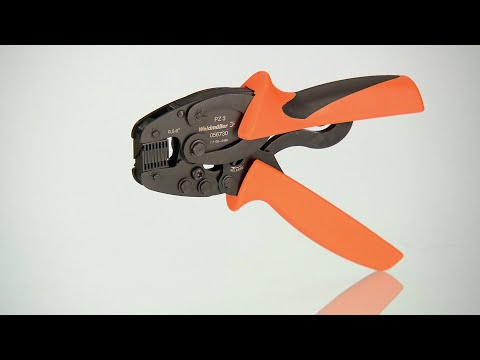

Weidmuller 0567300000 PZ 3

PZ 3
PZ 3
PZ 3
  • MPN: 0567300000
  • PPN: WDM-0567300000

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$438.42/ EA

Description

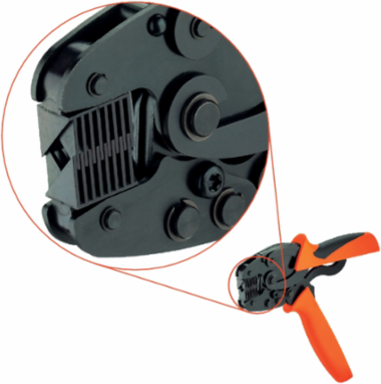

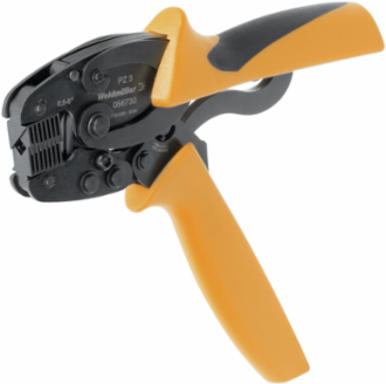

Pressing tool, Crimping tool for wire-end ferrules, 0.5mm², 6mm², Square crimp

Specifications

Approvals

Approvals
EAC

Dimensions And Weights

Width
200 mm
Weight
426 g
Width (inches)7.874 inch
Net weight427.56 g

Classifications

ETIM 6.0
EC000168
eClass 9.0
21-04-38-11
eClass 10.0
21-04-38-11
ETIM 7.0EC000168
eClass 9.121-04-38-11
UNSPSC31-16-31-02

Environmental Product Compliance

REACH SVHC
Lead 7439-92-1

Technical Data

Version
Mechanical, without interchangeable inserts

Tool Data Crimping

Crimping type/profile
Square crimp
Wire end ferrules cross-section, max.
6 mm²
Wire end ferrules cross-section, min.0.5 mm²

Description Of Contact

Type of contact

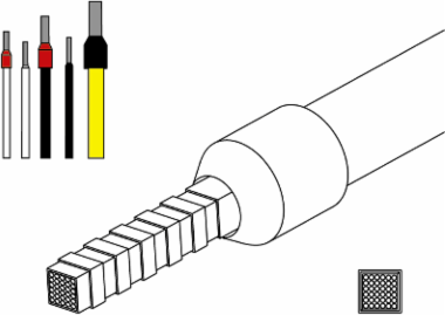

Wire-end ferrules with/without plastic collars
Crimping range, max.
6 mm²
Conductor cross-section, min. AWG
AWG 21
Crimping range, min.0.5 mm²
Conductor cross-section, max. AWGAWG 10
