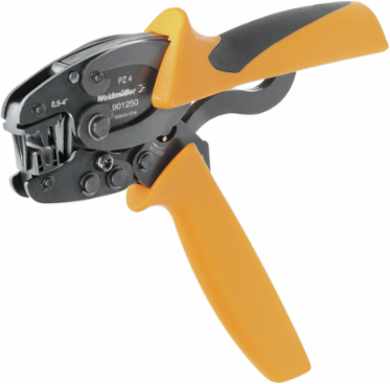

Weidmuller 9012500000 PZ 4
- MPN: 9012500000
- PPN: WDM-9012500000
CAD
$265.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

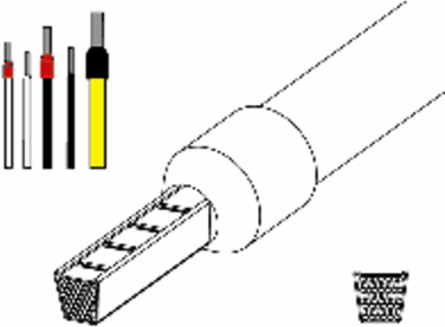

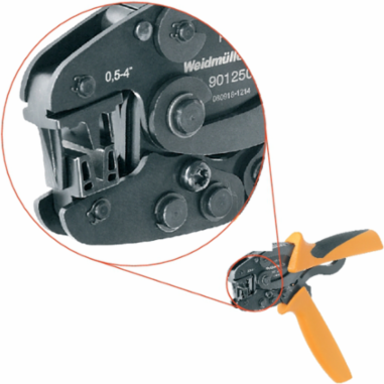

Pressing tool, Crimping tool for wire-end ferrules, 0.5mm², 4mm², Trapezoidal crimp
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
Dimensions And Weights
| Width | 200 mm |
|---|---|
| Weight | 448 g |
| Width (inches) | 7.874 inch |
|---|---|
| Net weight | 427.74 g |
Classifications
| ETIM 6.0 | EC000168 |
|---|---|
| eClass 9.0 | 21-04-38-11 |
| eClass 10.0 | 21-04-38-11 |
| ETIM 7.0 | EC000168 |
|---|---|
| eClass 9.1 | 21-04-38-11 |
| UNSPSC | 31-16-31-02 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Version | Mechanical, without interchangeable inserts |
|---|
Tool Data Crimping
| Crimping type/profile | Trapezoidal crimp |
|---|---|
| Wire end ferrules cross-section, max. | 4 mm² |
| Wire end ferrules cross-section, min. | 0.5 mm² |
|---|
Description Of Contact
| Type of contact | Wire-end ferrules with/without plastic collars |
|---|---|
| Crimping range, max. | 4 mm² |
| Conductor cross-section, min. AWG | AWG 21 |
| Crimping range, min. | 0.5 mm² |
|---|---|
| Conductor cross-section, max. AWG | AWG 12 |
