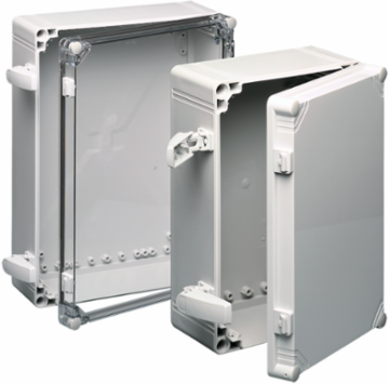

nVent Hoffman Q302013PCIQRCCR QLine I Enclosure QR Clear Cover Type 4X, 300x200x132mm, Polycarbonate
nVent Hoffman Q302013PCIQRCCR QLine I Enclosure QR Clear Cover Type 4X, 300x200x132mm, Polycarbonate
- MPN: Q302013PCIQRCCR
- UPC: 783510159832
- PPN: HOF-Q302013PCIQRCCR
- UNSPSC: 39121309
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$259.54/ EA
Description
QLine I polycarbonate/ABS larger sized enclosures ideal in corrosive environments protecting controls. This QLine I Enclosure QR Clear Cover Type 4X, Q302013PCIQRCCR item measures 300x200x132mm with a material of Polycarbonate.
Features
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable-depth panel kit
- Screws provided for mounting optional panel
- Optional extension rings are molded polycarbonate
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 200
- Protection Rating
- NEMA Type 12
- Finish
- Smooth Gloss
- Color Code
- RAL 7035
- Mounting (G x H)
- 280 x 180
- Latch Type
- Quick Release
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Sub Brand
- QLine
- Size
- 250x175x149mm
Height (H)300
Depth (D)132
Product FamilyQLine
ColorLight Gray
Thickness (T)4
Cover StyleClear
IP RatingIP66
Weight3.7
MaterialPolycarbonate
