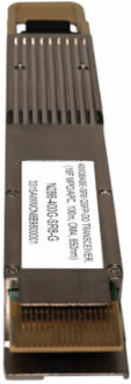

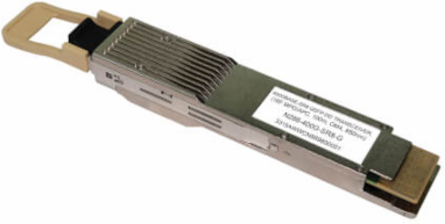

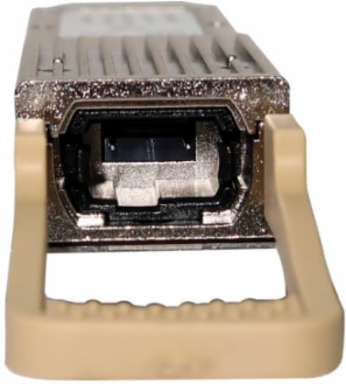

Tripp Lite N286400GSR8G QSFP-DD Transceiver, 400GBase-SR8, MPO/APC MMF, 850 nm, 100 m
- MPN: N286400GSR8G
- UPC: 037332284112
- PPN: TRP-N286-400G-SR8-G
CAD
$1440.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QSFP-DD Transceiver - 400GBase-SR8, MPO/APC MMF, 400 Gbps, 850 nm, 100 m (328 ft.)
Documentation & Downloads
Specifications
Dimensions
| Side A Connector | QSFP-DD |
|---|---|
| Optical Port | MPO/MTP |
| Unit Weight | 0.1102 lb |
| Side B Connector | 16F MTP/MPO (Female) |
|---|---|
| Unit Dimensions | 0.700 x 3.100 x 5.700 in |
Material
| Technology | Fiber; Multimode |
|---|---|
| Connector Material | Zinc Alloy |
| Mode Type | Multimode |
|---|---|
| Driver Required | No |
Compliance
| Product Warranty Period | 3-year limited warranty |
|---|
Reference
| Brand Compatibility | Cisco |
|---|
Performance
| Network Compatibility | 400 Gbps |
|---|---|
| Data Transfer Rate | 400 Gbps |
| Transmission Distance | 100 m |
| Storage Temperature Range | -40 to 185 F (-40 to 85 C) |
| Maximum Data Rate | 400 Gbps |
|---|---|
| Wavelength | 840nm; 850nm; 860nm |
| Operating Temperature Range | 32 to 158 F (0 to 70 C) |
| Relative Humidity | 5% to 85% RH, Non-Condensing |
