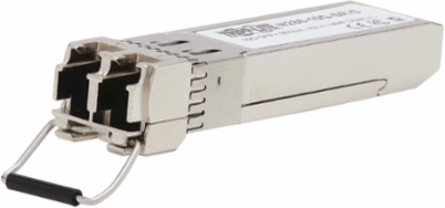

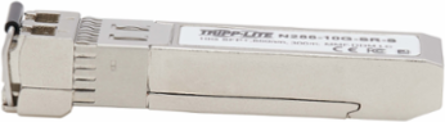

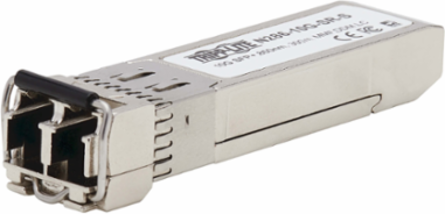

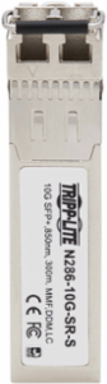

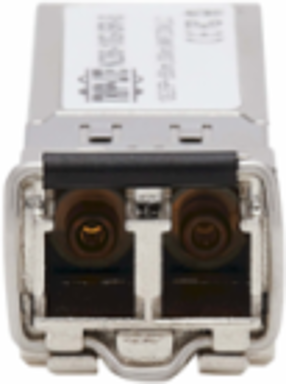

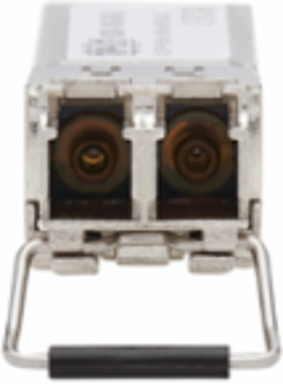

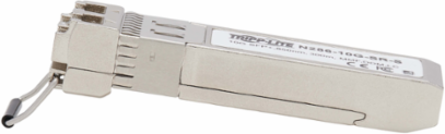

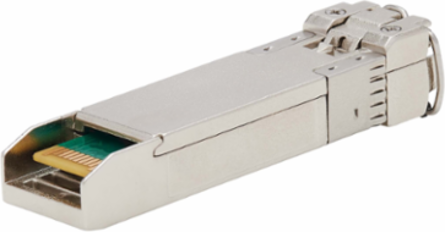

Tripp Lite N286-10G-SR-S Cisco-Compatible SFP-10G-SR-S SFP+ Transceiver - 10GBase-SR, DDM, Multimode LC, 850 nm, 300 m (984 ft.)
Tripp Lite N286-10G-SR-S Cisco-Compatible SFP-10G-SR-S SFP+ Transceiver - 10GBase-SR, DDM, Multimode LC, 850 nm, 300 m (984 ft.)
- MPN: N286-10G-SR-S
- UPC: 037332249265
- PPN: TRP-N286-10G-SR-S
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$446.30/ EA
Description
Cisco-Compatible SFP-10G-SR-S SFP+ Transceiver - 10GBase-SR, DDM, Multimode LC, 850 nm, 300 m (984 ft.)
Features
- SFP+ transceiver module 100% compatible with Cisco’s equivalent module
- Provides 10 Gbps throughput up to 300 m (984 ft.) via multimode fiber cabling
- LC duplex female connector supports 10GBase-SR signal at 850 nm wavelength
- Hot-swappable interface lets you install and uninstall without shutting down
- Supports DDM for monitoring temperature and other real-time operating parameters
- 3-year limited warranty
- SFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server
- Functionally Equivalent to Cisco SFP-10G-SR-S Transceiver Module
- Hot-Swappable for Installation Without Network Interruption
- Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
- S-Class Transceiver Highly Recommended for Enterprise Network
Specifications
Features & Specifications
- Driver Required
- No
- Brand Compatibility
- Cisco
- Optical Port
- LC
- Mode Type
- Multimode
TechnologyMultimode
Wavelength850nm
Transmission Distance300 m
Multi-Source Agreement (MSA) CompliantYes
Connections
- Side A - Connector 1
- SFP+ (MALE)
Side B - Connector 1LC DUPLEX (FEMALE)
Physical
- Color
- Silver
- Unit Weight (lbs.)
- 0.064
Unit Dimensions (hwd / in.)0.49 x 2.3 x 0.55
Environmental
- Operating Temperature Range
- 23 to 185°F (-5 to 85°C)
- Relative Humidity
- 5% to 85% RH, Non-Condensing
Storage Temperature Range-40 to 185°F (-40 to 85°C)
Overview
- UPC Code
- 037332249265
Special Features
- Data Transfer Rate
- 10Gbps
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
