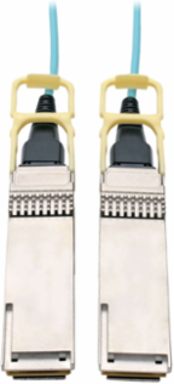

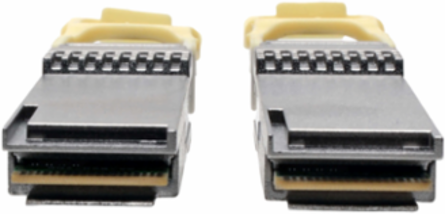

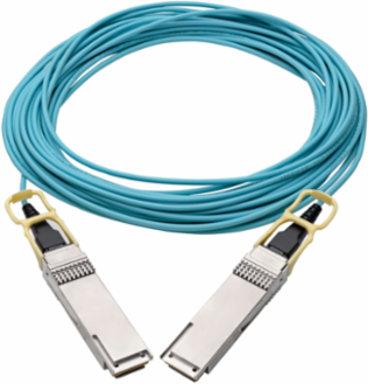

Tripp Lite N28H-15M-AQ QSFP28 to QSFP28 Active Optical Cable, 100GbE, Aqua, 15 Meter
- MPN: N28H-15M-AQ
- UPC: 037332225634
- PPN: TRP-N28H-15M-AQ
CAD
$1887.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QSFP28 to QSFP28 Active Optical Cable, 100GbE, Aqua, 15 Meter
Features
- Combines 4 full-duplex 25 Gbps SFP lanes for an aggregated 100 Gbps rate
- Ideal for switches, servers, routers and other high-end networking equipment
- Multi-platform support for 100 Gb Ethernet, InfiniBand, Fibre Channel and PCIe
- Ergonomic push/pull tabs allow easy one-handed connection and disconnection
- Compliant with QSFP28 MSA and SFF-8636 architecture for full QSFP compatibility
- 1-year limited warranty
- QSFP28 Cable Connects Network Equipment at Speeds up to 100 Gbps
- Push/Pull Tab Connectors Provide Quick, Easy Connections
- Engineered and Optimized for Bandwidth-Intense Applications
- Fully Compliant and Compatible with the Latest Standards
Documentation & Downloads
Specifications
Additional
| Data Rate | 100 Gbps |
|---|---|
| Side A - Connector 1 | QSFP28 (Male) |
| Number of Fibers | 8 |
| Cable Jacket Type | OFNP (Plenum Rated) |
| Core Diameter | 125 m |
| Technology | SFP+/QSFP+/QSFP28 |
| Warranty | 1-year limited warranty |
| Cable Length | 15 m (49.2 ft) |
|---|---|
| Side B - Connector 1 | QSFP28 (Male) |
| Optical Mode | OM3 |
| Cable Outer Diameter | 2.9 0.1 mm |
| Clad Diameter | 50 m |
| Certifications | RoHS, UL (E347511), Laser Safety (IEC 60825-1:2014) |
| Color | Aqua |
