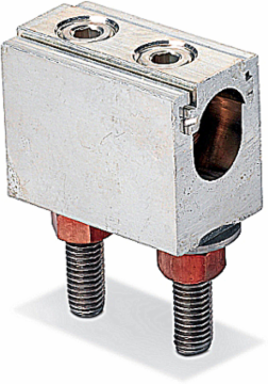

Homac AK 600 N Quick-Disconnect Transformer Connector
- MPN: AK 600 N
- UPC: 078378669266
- PPN: T-B-AK 600 N
CAD
$238.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Lay-In Transformer Spade Connectors - AK Series, cable range 2-600, outlets 1
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121443 Electrical underground bus connector
- Brand Name
- Homac
- Special Features
- The Slide-out Keeper Minimizes the hassle and hazards of forcing cables into closed ports. Require only a cable stripper and Allen hex wrench - no crimping tools or dies or other special tools needed for installation. Transformer changes require only the connector to be unbolted from the spade - no need to disconnect all the conductors, as with compression systems. Dual rated to use with Aluminum or Copper. Double Set Screws maximize contact area and mechanical characteristics. Ball-bottom screws ensure even force distribution in the cable/connector interface.
- Size
- Body is 2.750 inch long, 1.642 inch wide, 2.108 inch high.
- Conductor Range
- 2 to 600 kcmil
- Material
- Aluminum
IGCC4663 Electrical underground bus connector
TypeQuick-Disconnect Transformer Connector
ApplicationLay-In Transformer Spade Connector
ConnectionMechanical
Number Of Conductors1
Packaging
- Outer Quantity
- 10
- Weight Uom
- 1.09 lbs. Each
Outer Dimensions (inches)7.5x6x6.5
