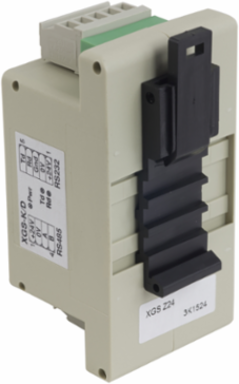

Telemecanique Sensors XGSZ24 RS232/RS485 interface, Radio frequency identification XG, RS 232/RS 485 line adaptor, for XGS K, XGS D
- MPN: XGSZ24
- PPN: TES-XGSZ24
- UNSPSC: 43201413
CAD
$413.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This line adaptor is part of the XG range, an offer of RFID readers and electronic tags. RFID, Radio Frequency Identification, refers to radio frequency identification systems, 13.56 MHz. This product is a line adaptor RS 232C/RS 485 without modem signals. Power supply 18V to 30V DC. Consumption 20mA. Electrical connection by screw connectors. For mounting on a 35mm DIN rail.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Radio frequency identification XG |
|---|---|
| Accessory / Separate Part Type | RS232C/RS485 line adaptor |
| Product Or Component Type | RS232/RS485 interface |
|---|---|
| Accessory / Separate Part Destination | XGSD || XGSK || XGCS |
Complementary
| [Ie] Rated Operational Current Dc | 20 mA |
|---|---|
| Mounting Support | 35 mm symmetrical DIN rail |
| Connection Element | RS232/RS485 interface |
| [Us] Rated Supply Voltage | 18...30 V DC || 24 V DC |
| Net Weight | 0.105 kg || 0.1 kg |
| Communication Port Converter | RS232C/RS485 no modem signals |
| Supply Voltage Limits | 20-30 V |
|---|---|
| Product Mounting | 35 mm symmetrical DIN rail |
| Electrical Connection | screw connectors |
| Transmission Rate | <= 19200 bit/s || 19200 bauds |
| Current Consumption | 20 mA |
Offer Sustainability
| Circularity Profile | ENVEOLI111218EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP060407EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Contractual warranty
| Warranty | 18 months |
|---|
