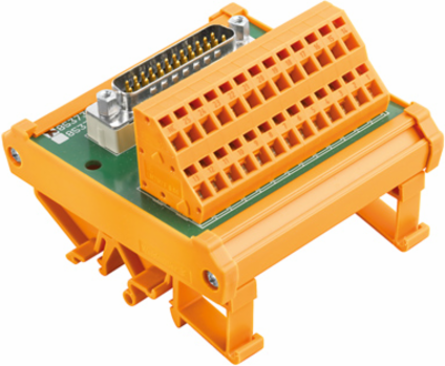

Weidmuller 8537400000 RS SD15 BZ
- MPN: 8537400000
- PPN: WDM-8537400000
CAD
$148.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Interface, RSSD, D-sub connectors, acc. to IEC 60807 / DIN 41652, 15-pole female, Tension-clamp connection
Specifications
Approvals
| Approvals | CE, EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 60 mm |
|---|---|
| Width | 87 mm |
| Height | 63.6 mm |
| Net weight | 120 g |
| Length (inches) | 2.362 inch |
|---|---|
| Width (inches) | 3.425 inch |
| Height (inches) | 2.504 inch |
Insulation Coordination (En50178)
| According to | DIN EN 50178 |
|---|---|
| Surge voltage category | II |
| Pulse voltage test (1,2/50μs) | 0.8 kV |
| Rated insulation voltage | 100 V |
|---|---|
| Pollution severity level | 2 |

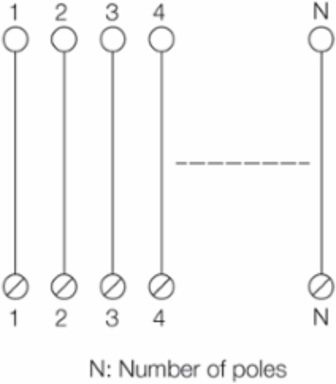

Connection Data
| Connection on control side | D-sub connectors, acc. to IEC 60807 / DIN 41652 |
|---|---|
| Design of locking system | UNC 4/40 |
| Earthing | No |
| Number of poles (control side) | 15-pole female |
|---|---|
| Connection (field side) | LM2NZF 5.08mm |
Connection Field
| Type of connection | Tension-clamp connection |
|---|---|
| Clamping range, max. | 2.5 mm² |
| Solid, max. H05(07) V-U | 2.5 mm² |
| Flexible, max. H05(07) V-K | 1.5 mm² |
| Flexible with sleeve, min. | 0.25 mm² |
| Min. wire cross-section, AWG | AWG 24 |
| Stripping length | 7.5 mm |
| Clamping range, min. | 0.13 mm² |
|---|---|
| Solid, min. H05(07) V-U | 0.2 mm² |
| Flexible, min. H05(07) V-K | 0.2 mm² |
| Flexible with sleeve, max. | 1.5 mm² |
| Sleeve with plastic collar, max. | 1.5 mm² |
| Max. wire cross-section, AWG | AWG 14 |
Classifications
| ETIM 6.0 | EC002780 |
|---|---|
| eClass 9.0 | 27-14-11-52 |
| eClass 10.0 | 27-14-11-52 |
| ETIM 7.0 | EC002780 |
|---|---|
| eClass 9.1 | 27-14-11-52 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 55 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | 0...55 °C |
| Operating temperature, min. | 0 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40...70 °C |
Rating Data
| Rated voltage | 100 V |
|---|
| Rated current per connection | 1.5 A |
|---|
