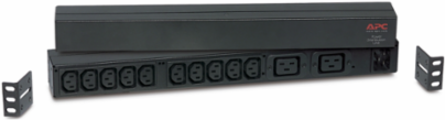

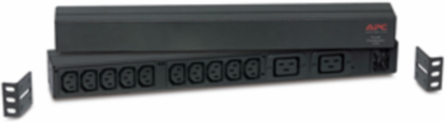

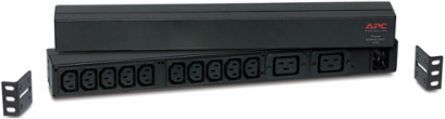

APC AP9559 Basic Rack PDU, 1U, 16A, Input Voltage 208V/230V, (10)C13 & (2)C19 Outputs

MPN: AP9559
UPC: 731304123521
PPN: APC-AP9559

$519.40

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 16A and operates at 208 and 230V. The PDU features 10 IEC 60320 C13 outlets and 2 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes an 8.2-foot power cord with an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual.

Features

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Features 10 C13 and 2 C19 outlets for comprehensive power distribution
Horizontal mounting to fit various rack configurations
Supports up to 16A, 208 and 230V power distribution
Includes toolless mounting kit for quick setup

Documentation & Downloads

Specifications

Additional

Voltage	120 V, 208 V, 230 V
Load Capacity	3680 VA
Height	1.73 in (4.4 cm)
Depth	2.24 in (5.7 cm)
Weight	2.16 lb (0.98 kg)
Mounting Position	front, rear, horizontal
RoHS	Compliant
California Proposition 65	Prop 65 Compliant
REACH	Free of Substances of Very High Concern

Amperage	16 A
Rack Units	1U
Width	17.60 in (44.7 cm)
Cord Length	8.2 ft (2.50 m)
Input Plug Type	IEC 60320 C20
Outlet Type and Quantity	10 IEC 60320 C13, 2 IEC 60320 C19
Approvals	cUL Listed, CE, UL Listed, VDE, Victoria
Lead Free	Yes
